Bay SensorTec 센서 장점

  • All Products are Made in Germany

  • 30년 이상의 경험을 바탕으로 하고 있습니다.

  • Bay SensorTec은 내장 가속도 센서를 직접 만듭니다.

  • 주파수 교정 (Frequency Calibration)과 충격교정 (Shock Calibration) 모두 가능합니다.

Automotive Crash Test Sensors
IMU

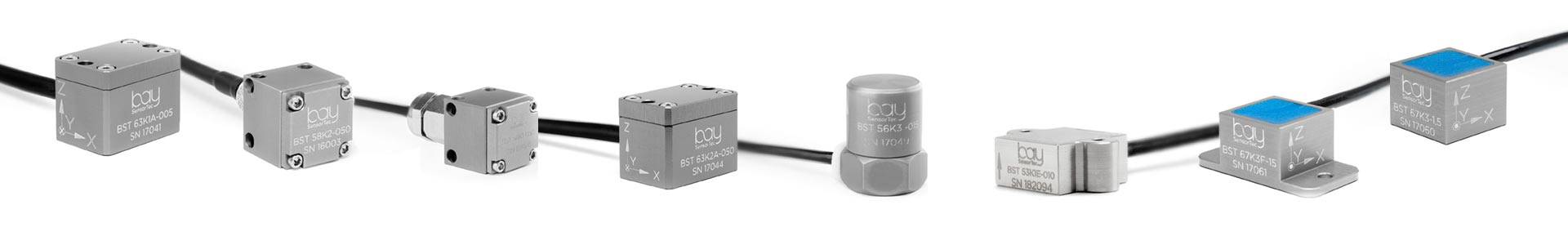

Accelerometers | Capacitive, Uniaxial (1축)

51K3  / Capacitive, Uniaxial Accelerometers /

  • Range: 1.5g to 15g
  • Sensitivity: 1000mV/g to 100mV/g
  • Material: Aluminum
  • Temperature range: -20° to 80°C
DATASHEET

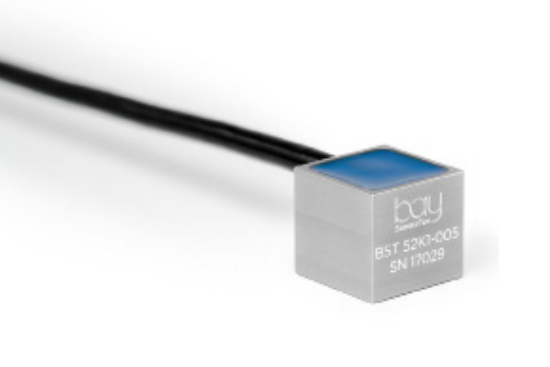

52K1  / Capacitive, Uniaxial Accelerometers /

  • Range: 2g to 200g
  • Sensitivity: 2000mV/g to 20mV/g
  • Material: Aluminum
  • Temperature range: -20° to 80°C
  • Fully Temperature Compensated
DATASHEET

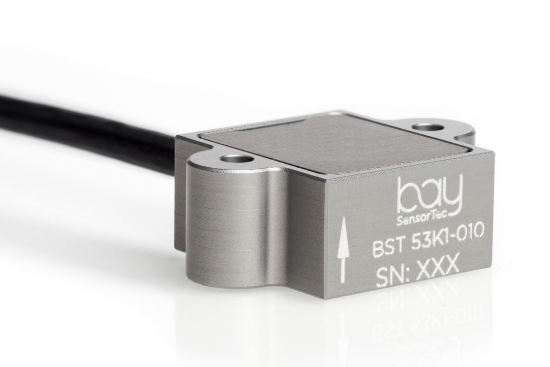

53K1  / Capacitive, Uniaxial Accelerometers /

  • Range: 2g to 200g
  • Sensitivity: 2000mV/g to 20mV/g
  • Material: Aluminium, Stainless Steel (option)
  • Temperature range: -25° to 100°C
  • Fully Temperature Compensated
DATASHEET

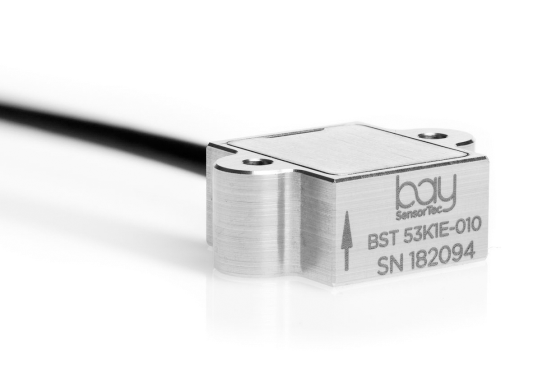

53K1E  / Capacitive, Uniaxial Accelerometers /

  • Range: 2g to 200g
  • Sensitivity: 2000mV/g to 20mV/g
  • Material: Stainless Steel
  • Temperature range: -25° to 100°C
DATASHEET

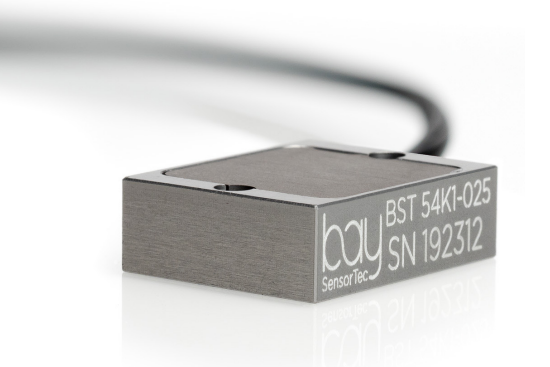

54K1  / Capacitive, Uniaxial Accelerometers /

  • Range: 2g to 200g
  • Sensitivity: 2000mV/g to 20mV/g
  • Material: Aluminium / Stainless Steel (option)
  • Temperature range: -25° to 100°C
  • Fully Temperature Compensated
DATASHEET

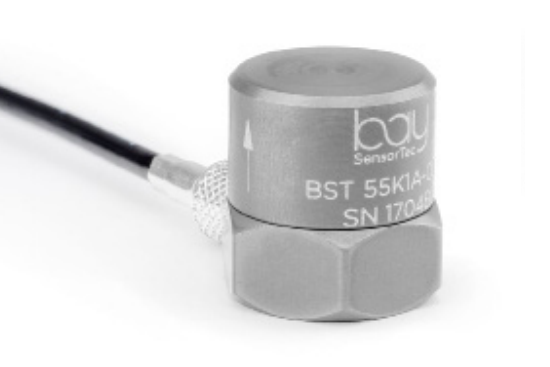

55K1  / Capacitive, Uniaxial Accelerometers /

  • Range: 2g to 200g
  • Sensitivity: 2000mV/g to 20mV/g
  • Material: Aluminium
  • Temperature range: -25° to 100°C
  • Fully Temperature Compensated
DATASHEET

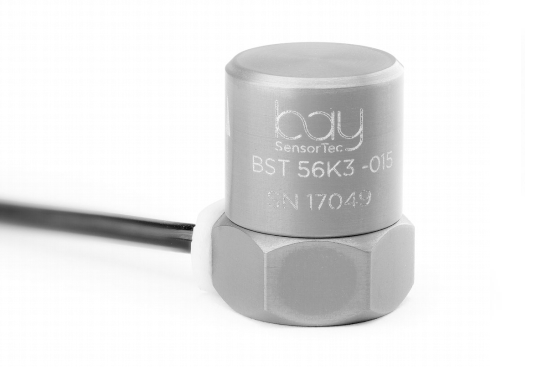

56K3  / Capacitive, Uniaxial Accelerometers /

  • Range: 1.5g to 15g
  • Sensitivity: 1000mV/g to 100mV/g
  • Material: Aluminium
  • Temperature range: -20° to 80°C
  • Low cost
DATASHEET

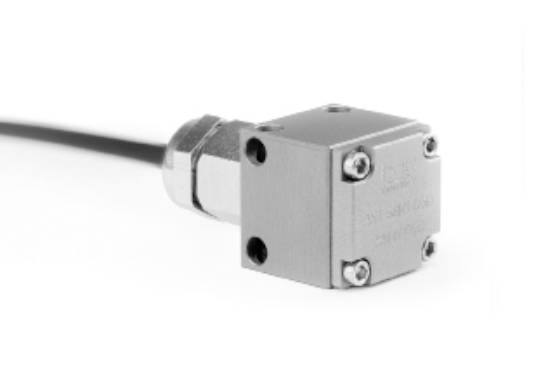

58K1  / Capacitive, Uniaxial Accelerometers /

  • Range: 2g to 200g
  • Sensitivity: 2000mV/g to 20mV/g
  • Material: Aluminium
  • Temperature range: -25° to 100°C
  • Fully Temperature Compensated
  • Option: Housing with connector
DATASHEET

Accelerometers | Capacitive, Triaxial (3축)

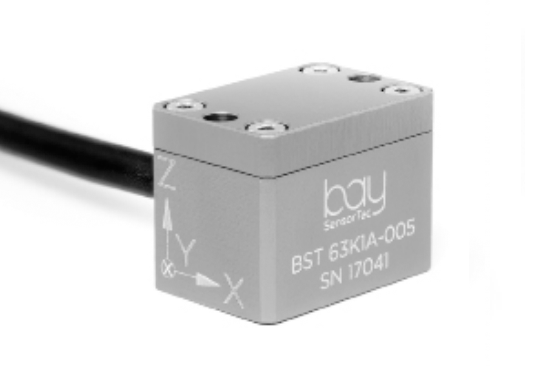

63K1  / Capacitive, Triaxial Accelerometers /

  • Range: 2g to 200g
  • Sensitivity: 2000mV/g to 20mV/g
  • Material: Aluminium
  • Temperature range: -25° to 100°C
DATASHEET

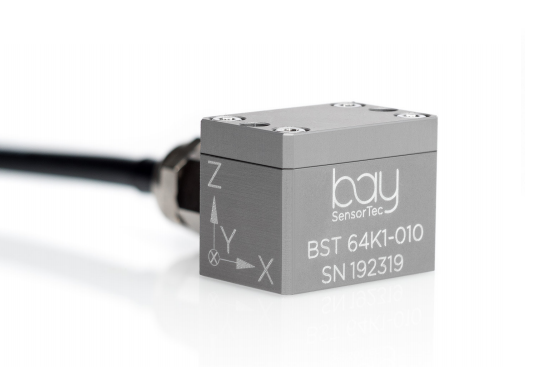

64K1  / Capacitive, Triaxial Accelerometers /

  • Range: 2g to 200g
  • Sensitivity: 2000mV/g to 20mV/g
  • Material: Stainless Steel / Aluminium
  • Temperature range: -25° to 100°C
  • IP67
  • Fully Temperature Compensated
DATASHEET

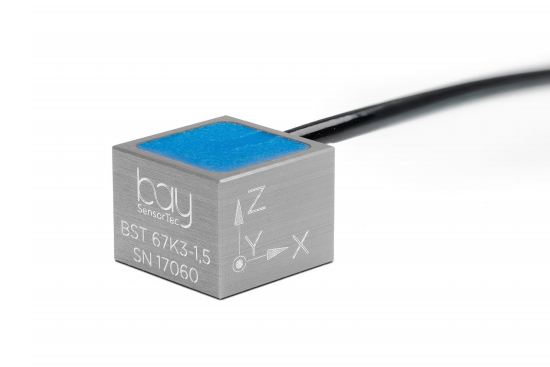

67K3  / Capacitive, Triaxial Accelerometers /

  • Range: 1.5g to 15g
  • Sensitivity: 1000mV/g to 100mV/g
  • Material: Aluminium
  • Temperature range: -20° to 80°C
  • Low cost
DATASHEET

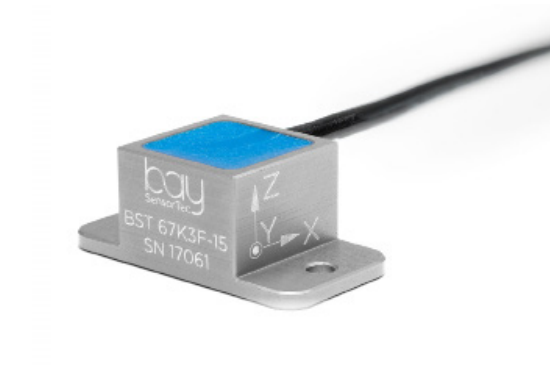

67K3F  / Capacitive, Triaxial Accelerometers /

  • Range: 1.5g to 15g
  • Sensitivity: 1000mV/g to 100mV/g
  • Material: Aluminium
  • Temperature range: -20° to 80°C
  • Low cost
DATASHEET

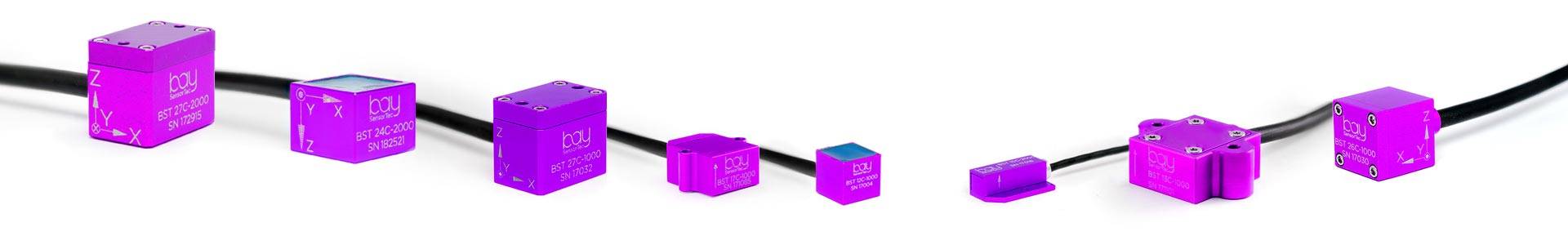

Accelerometers | Piezo-Resistive, Uniaxial (1축)

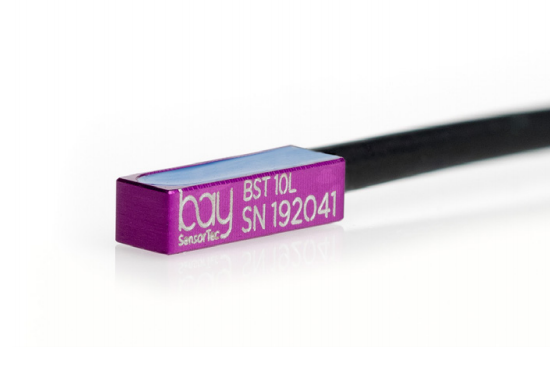

10L  / Piezo-resistive, Uniaxial Accelerometers /

  • Range: 500g to 2000g
  • Sensitivity: 0.04mV/V/g to 0.016mV/V/g
  • Damping ratio: 0.7
  • Material: Aluminium
  • Temperature range: -20° to 70°C
  • Crash test, Shock test
DATASHEET

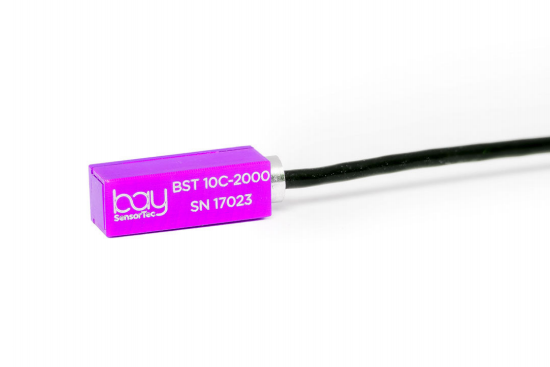

10C  / Piezo-resistive, Uniaxial Accelerometers /

  • Range: 500g to 2000g
  • Sensitivity: 0.04mV/V/g to 0.016mV/V/g
  • Damping ratio: 0.05
  • Material: Aluminium
  • Temperature range: -20° to 70°C
  • Crash test, Flatter test
DATASHEET

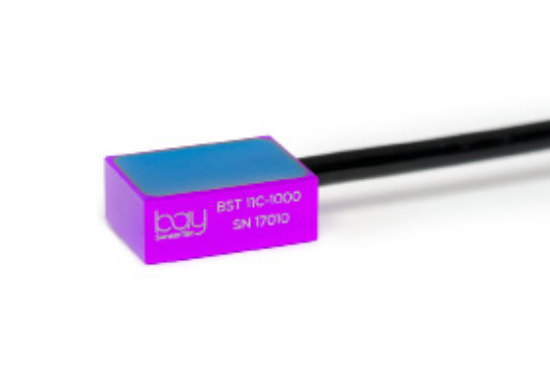

11C  / Piezo-resistive, Uniaxial Accelerometers /

  • Range: 100g to 2000g
  • Sensitivity: 0.1mV/V/g to 0.016mV/V/g
  • Damping ratio: 0.7
  • Material: Aluminium
  • Temperature range: -20° to 80°C
  • DC Response, High Shock
  • Crash test, Flatter test
DATASHEET

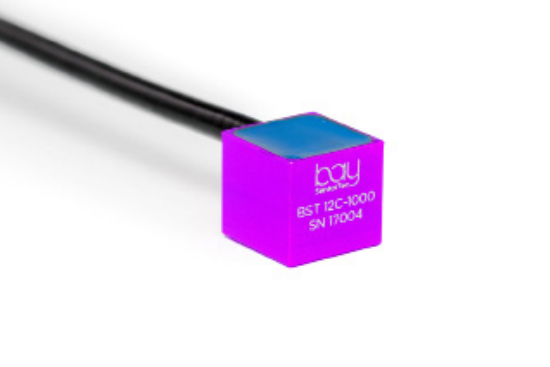

12C  / Piezo-resistive, Uniaxial Accelerometers /

  • Range: 100g to 2000g
  • Sensitivity: 0.1mV/V/g to 0.016mV/V/g
  • Damping ratio: 0.7
  • Material: Aluminium
  • Temperature range: -20° to 80°C
  • DC Response
  • Crash test, Flatter test
DATASHEET

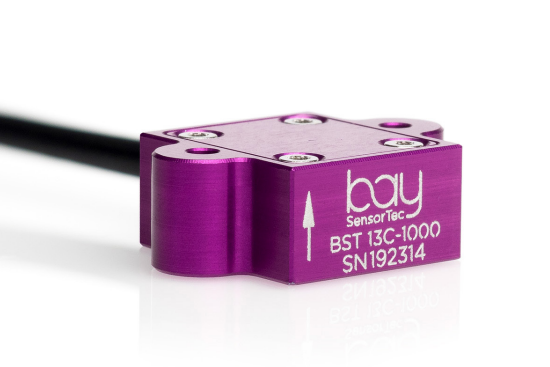

13C  / Piezo-resistive, Uniaxial Accelerometers /

  • Range: 100g to 2000g
  • Sensitivity: 0.1mV/V/g to 0.016mV/V/g
  • Damping ratio: 0.7
  • Material: Aluminium
  • Temperature range: -20° to 70°C
  • DC Response
  • Crash test, Shock test
DATASHEET

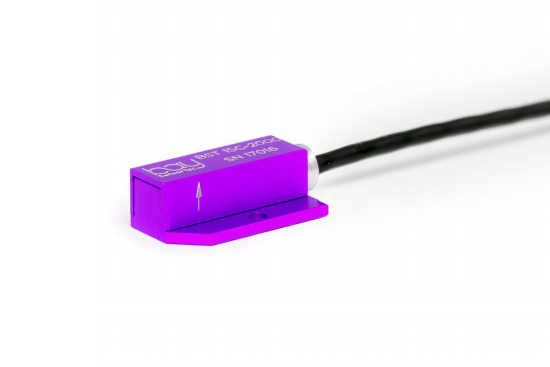

15C  / Piezo-resistive, Uniaxial Accelerometers /

  • Range: 500g to 2000g
  • Sensitivity: 0.04mV/V/g to 0.016mV/V/g
  • Damping ratio: 0.05
  • Material: Aluminium
  • Temperature range: -20° to 70°C
  • undamped
  • Crash test, Shock test
DATASHEET

15CB  / Piezo-resistive, Uniaxial Accelerometers /

  • Range: 500g to 2000g
  • Sensitivity: 0.04mV/V/g to 0.016mV/V/g
  • Damping ratio: 0.05
  • Material: Aluminium
  • Temperature range: -20° to 70°C
  • undamped
  • Crash test, Shock test
DATASHEET

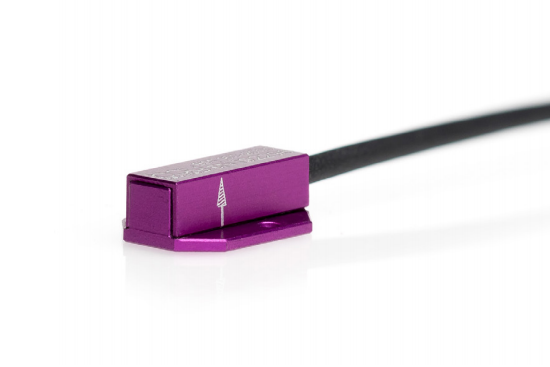

16C  / Piezo-resistive, Uniaxial Accelerometers /

  • Range: 1000g and 2000g
  • Sensitivity: 0.02mV/V/g
  • Damping ratio: 0.7
  • Material: Aluminium
  • Temperature range: -20° to 70°C
  • Crash test, Shock test
DATASHEET

17C  / Piezo-resistive, Uniaxial Accelerometers /

  • Range: 100g to 2000g
  • Sensitivity: 0.1mV/V/g to 0.016mV/V/g
  • Damping ratio: 0.7
  • Material: Aluminium
  • Temperature range: -20° to 70°C
  • DC Response
  • Crash test, Shock test, Slid test
DATASHEET

18C  / Piezo-resistive, Uniaxial Accelerometers /

  • Range: 100g to 2000g
  • Sensitivity: 0.1mV/V/g to 0.016mV/V/g
  • Damping ratio: 0.7
  • Material: Aluminium
  • Temperature range: -20° to 70°C
  • Crash test, Flatter test, Slid test
DATASHEET

Accelerometers | Piezo-Resistive, Triaxial (3축)

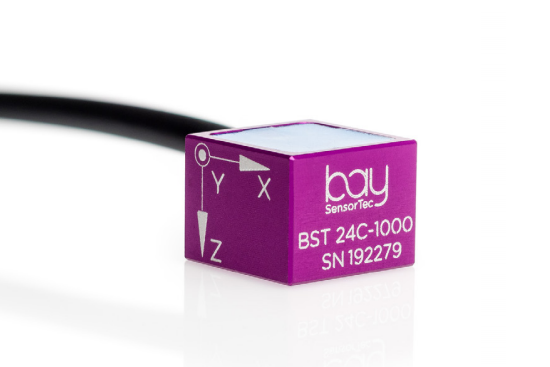

24C  / Piezo-resistive, Triaxial Accelerometers /

  • Range: 100g to 2000g
  • Sensitivity: 0.1mV/V/g to 0.016mV/V/g
  • Damping ratio: 0.7
  • Material: Aluminium
  • Temperature range: -20° to 80°C
  • DC Response, Low Mass
  • Crash test, Shock test
DATASHEET

26C  / Piezo-resistive, Triaxial Accelerometers /

  • Range: 100g to 2000g
  • Sensitivity: 0.1mV/V/g to 0.016mV/V/g
  • Damping ratio: 0.7
  • Material: Aluminium
  • Temperature range: -20° to 80°C
  • High frequency response
  • Crash test, Shock test
DATASHEET

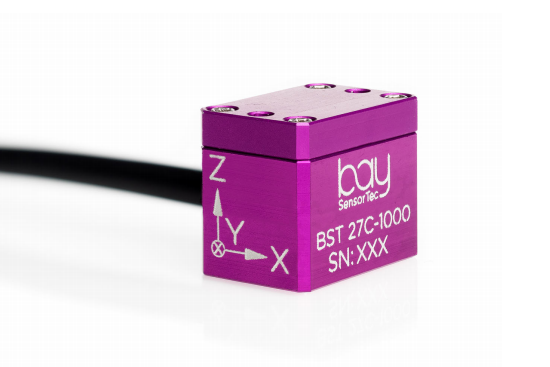

27C  / Piezo-resistive, Triaxial Accelerometers /

  • Range: 100g to 2000g
  • Sensitivity: 0.1mV/V/g to 0.016mV/V/g
  • Damping ratio: 0.7
  • Material: Aluminium
  • Temperature range: -20° to 80°C
  • DC Response, Low Mass
  • Crash test, Shock test
DATASHEET

Accelerometers | IEPE Sensors, Triaxial (3축)

903  / IEPE Sensor, Triaxial Accelerometers /

  • Range: 55g to 550g
  • Sensitivity: 10mV/g to 100mV/g
  • Material: Aluminium
  • Temperature range: -30° to 100°C
  • Modal/Structure Analysis, Train, Motion, Automotive
DATASHEET

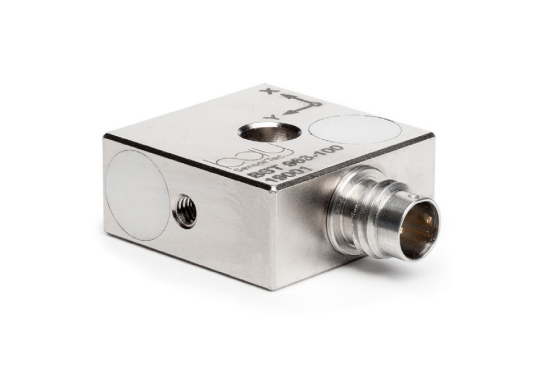

963  / IEPE Sensor, Triaxial Accelerometers /

  • Range: 55g to 550g
  • Sensitivity: 10mV/g to 100mV/g
  • Material: Aluminium
  • Temperature range: -40° to 120°C
  • Low temperature coefficient
  • Modal/Structure Analysis, Train, Motion, Automotive
DATASHEET

Gyroscope | Uniaxial & Triaxial Gyro-Sensors

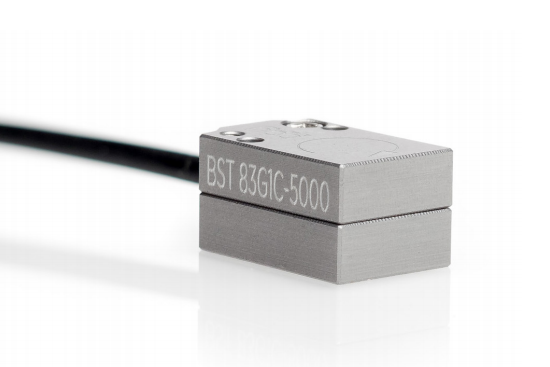

83G1C  / Gyro-Sensor, Uniaxial /

  • Range: 900°/s to 2700°/s
  • Sensitivity: 0.74 mV/°/s to 2.2 mV/°/s
  • Material: Aluminium
  • Temperature range: -20° to 80°C
  • 0Hz (DC)
  • Crash test
DATASHEET

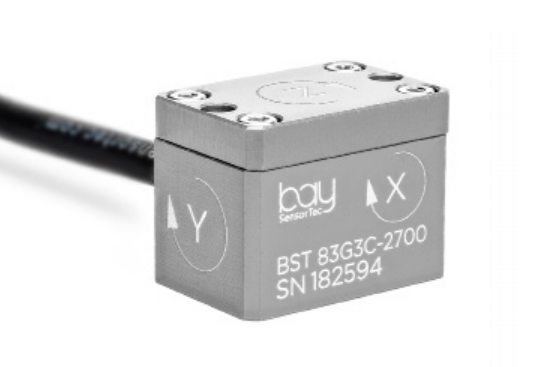

83G3C  / Gyro-Sensor, Triaxial /

  • Range: 900°/s to 2700°/s
  • Sensitivity: 0.74 mV/°/s to 2.2 mV/°/s
  • Material: Aluminium
  • Temperature range: -20° to 80°C
  • 0Hz (DC)
  • Crash test
DATASHEET

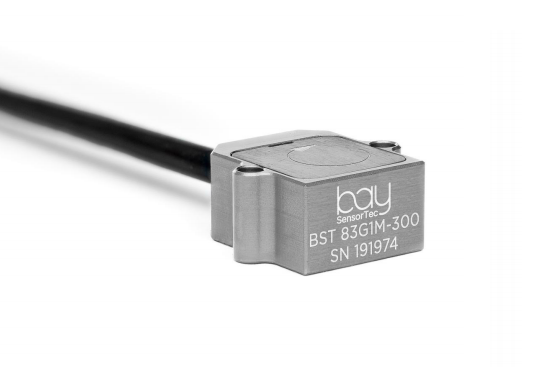

83G1M  / Gyro-Sensor, Uniaxial /

  • Range: 75°/s to 900°/s
  • Sensitivity: 1.2 mV/°/s to 13.5 mV/°/s
  • Material: Aluminium
  • Temperature range: -30° to 100°C
  • 0Hz (DC)
  • Automotive testing, Train, Truck/Bus
DATASHEET

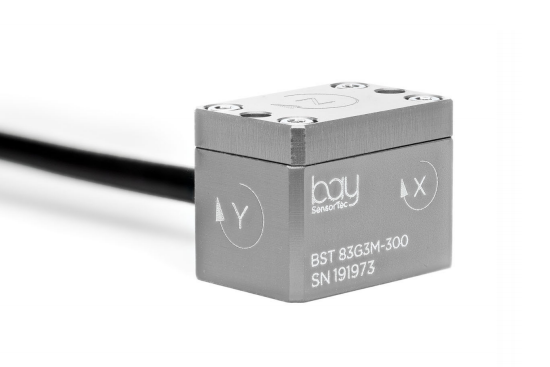

83G3M  / Gyro-Sensor, Triaxial /

  • Range: 75°/s to 900°/s
  • Sensitivity: 1.2 mV/°/s to 13.5 mV/°/s
  • Material: Aluminium
  • Temperature range: -30° to 100°C
  • 0Hz (DC)
  • Automotive testing, Train, Truck/Bus
DATASHEET

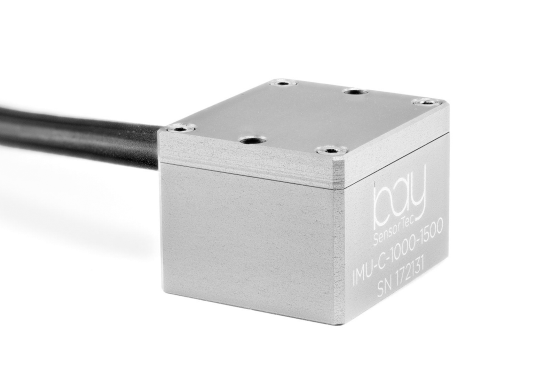

IMU | Inertial Measurement Unit, Six degrees of freedom

IMU-M  / Accelerometer Gyro, Triaxial /

  • Acceleration Range: 2g to 200g
  • Sensitivity: 1000 mV/g to 10 mV/g
  • Rotation Rate: 50°/s to 900°/s
  • Sensitivity: 40 mV/°/s to 2.2 mV/°/s
  • Material: Aluminium
  • Damping Factor: 0.5
  • Temperature range: -20° to 80°C
  • Automotive, Truck, Wind Energy, Geology
DATASHEET

IMU-C  / Accelerometer Gyro, Triaxial /

  • Acceleration Range: 1000g to 2000g
  • Sensitivity: 0.018 mV/V/g to 0.016 mV/V/g
  • Rotation Rate: 600°/s to 1500°/s
  • Sensitivity: 2.2 mV/°/s to 1.35 mV/°/s
  • Material: Aluminium
  • DC Response
  • Damping Factor: 0.7
  • Temperature range: 0° to 60°C
  • Crash test, Shock test
DATASHEET

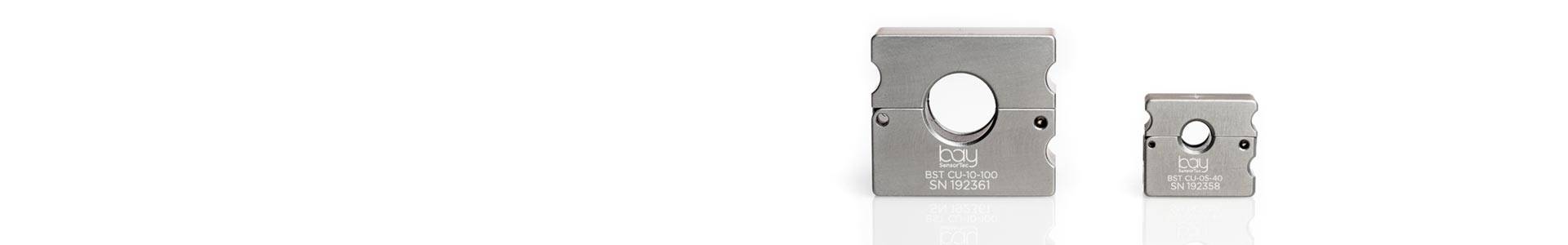

Current Probe | Automotive Crash test application

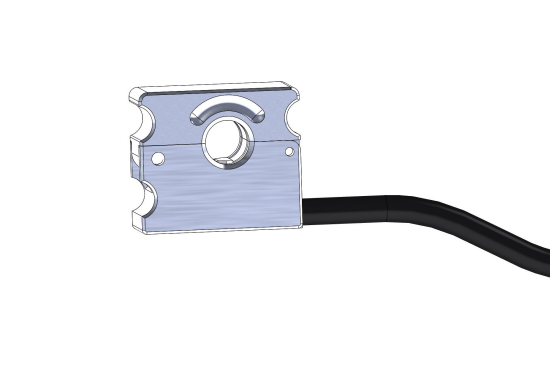

CU-05  / Current Probe /

  • Range: to 25A
  • Sensitivity: 3.5 mV/V/A
  • Material: Aluminium
  • Crash test
DATASHEET

CU-05  / Current Probe /

  • Range: to 40A
  • Sensitivity: 2.5 mV/V/A
  • Material: Aluminium
  • Crash test
DATASHEET

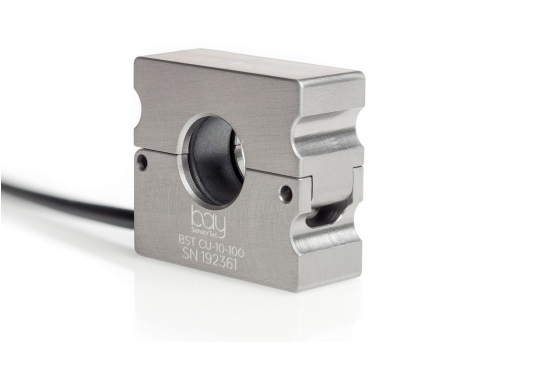

CU-10  / Current Probe /

  • Range: to 150A
  • Sensitivity: 2.0 mV/V/A
  • Material: Aluminium
  • Crash test
DATASHEET

SiliconDesigns MEMS Accelerometer

Silicon Designs, Inc.(SDI)사는 미세가공 부가기술과 집적회로기술을 결합하여 고신뢰성 Capacitance형 가속도센서를 제조하는 Miniature Accelerometer Technology를 개발하였으며, SDI사가 여기서 시도한 니켈계 소재를 이용한 센서의 제작은 비실리콘계 MEMS(Micro Electro-Mechanical Systems) 센서로서는 상업적으로 성공한 최초사례 중의 하나였다. 이 기본기술은 1990년 대를 거치면서 당시로서는 첨단의 Single point air bag 제어모듈을 포함한 산업용과 상업적인 시험장비 및 항공분야에 까지 그 응용범위를 넓혀 갔다. 초기개발 이후 개량을 향한 꾸준한 연구를 통하여 가속도 센서의 감도, 적응성, 신뢰성을 향상시킨 결과 관성항법과 같은  전혀 새로운 분야와 고온환경에서 사용되는데 까지 이르렀다. 현재 SDI의 센서는 2g~1,000g 범위의 Full scale sensitivity를 제공 가능하며, 표준범위는 2g ~ 400g 이다. 10,000g 에 지속적인 노출과 175℃ 이상의 고온에 제한적으로 노출된 후에도 스팩상의 기능을 지속적으로 유지할 수 있다.

Surface Mount Accelerometers | Analog ±4V Output, Digital Pulse Density Output

1521     | General Purpose Accelerometer

  • G Levels: 2, 5, 10, 25, 50, 100, 200, 400
  • Temperature Range: -55 to +125°C
  • Available Package Format: LCC & J-LCC
  • Versatile and reliable yet no minimum order
DATASHEET

1531     | High Temperature MWD Accelerometer

  • G Levels: 2, 5, 10, 25, 50, 100, 200, 400
  • Temperature Range: -55 to +175°C
  • Available Package Format: J-LCC
  • Rugged and durable in harsh environments
DATASHEET

1525     | Inertial-Grade Accelerometer

  • G Levels: 2, 5, 10, 25, 50, 100
  • Temperature Range: -40 to +85°C
  • Available Package Format: J-LCC
  • Superb long term and in-run stability for IMUs
  • (Not Available Now, 한국으로 수출승인 진행중에 있습니다)
DATASHEET

1525 Low G     | Inertial Navigation & Seismic Accelerometer

  • G Levels: 2, 5
  • Temperature Range: -55 to +125°C
  • Small J-Lead LCC-20 Ceramic Package
  • Responds to DC and AC Acceleration
  • (Not Available Now, 한국으로 수출승인 진행중에 있습니다.)
DATASHEET

1410     | Digital Density Output Accelerometer

  • G Levels: 2, 5, 10, 25, 50, 100, 200
  • Temperature Range: -55 to +125°C
  • Available Package Format: LCC & J-LCC
  • DPD output
DATASHEET

Single Axis Accelerometer Module | 1-Axis DC Accelerometer Modules

2210, 2260, 2266     | Low- Cost Module

  • G Levels: 2, 5, 10, 25, 50, 100, 200, 400
  • Temperature Range: -55 to +125°C
  • Excellent for Most Applications
  • Package: Anodized Aluminum
  • Integrated 3′ cable or Connector
DATASHEET

2220, 2276     | High-Performance Module

  • G Levels: 2, 5, 10, 25, 50, 100, 200
  • Temperature Range: -55 to +125°C
  • Upgraded Accelerometers
  • Package: Anodized Aluminum
  • Integrated 3′ cable or Connector
DATASHEET

2012     | Low-Voltage +5V DC Power (제한된 5V만 공급될 수 있는 환경)

  • G Levels: 2, 5, 10, 25, 50, 100, 200, 400
  • Temperature Range: -55 to +125°C
  • Package: Anodized Aluminum
  • Integrated 3′ cable
DATASHEET

2240     | Harsh Environment (Heavy-Duty 환경)

  • G Levels: 2, 5, 10, 25, 50, 100, 200
  • Temperature Range: -55 to +125°C
  • Package: Hermetic Titanium
  • Connector
DATASHEET

Three Axis Accelerometer Module | 3-Axis DC Accelerometer Modules

2460, 2466     | Low-Cost Module

  • G Levels: 2, 5, 10, 25, 50, 100, 200, 400
  • Temperature Range: -55 to +125°C
  • Excellent for Most Applications
  • Package: Anodized Aluminum
  • Integrated 3′ cable or Connector
DATASHEET

2470, 2476     | High-Performance Module

  • G Levels: 2, 5, 10, 25, 50, 100, 200
  • Temperature Range: -55 to +125°C
  • Upgraded Accelerometers
  • Package: Anodized Aluminum
  • Integrated 3′ cable or Connector
DATASHEET

2422     | Low-Voltage +5V DC Power (제한된 5V만 공급될 수 있는 환경)

  • G Levels: 2, 5, 10, 25, 50, 100, 200, 400
  • Temperature Range: -55 to +125°C
  • Package: Anodized Aluminum
  • Integrated 3′ cable
DATASHEET

2480     | Harsh Environment (Heavy-Duty 환경)

  • G Levels: 2, 5, 10, 25, 50, 100, 200
  • Temperature Range: -55 to +125°C
  • Package: Hermetic Titanium
  • Connector
DATASHEET

G-Logger Data Acquisition Systems | USB Powered, Programmable Stand Alone

3330     | USB Powered G-Logger

  • Low cost DAQ for quick answers
  • Simple but comprehensive system
  • View or save live data
  • Includes intuitive software

DATASHEET

MANUAL

3340     | Programmable Stand Alone & USB G-Logger

  • Includes all Model 3330 features
  • Stand alone with battery power
  • Event detection, GPS location data
  • Program a schedule

DATASHEET

MANUAL

Model 3330/3340 G-Logger Software (zip)

Accelerometer Accessories | Test Sets, Mounting Block

EB-L & EB-J Analog Test Sets     | Chip Test Sets

  • Easily Test SDI surface mount accelerometers during concept design or prior to installation
  • Chips can be removed and remain unharmed
  • Fully assembled for immediate implementation
  • Compatible with SDI Models: 1510, 1521, 1525 and 1531
  • Ideal to use with the SDI Model 3330 or 3340 G-Loggers
  • Configurations available for SDI’s JLCC or LCC chip packages
DATASHEET

2230     | Triaxial Mounting Block

  • Mix and Match up to 3 single axis modules in similar or different g-levels
  • Rugged, black anodized, and precision machined 6061-T6 aluminum
  • Block mass = 79 grams
  • Included hex socket head cap screw fasteners:
    • One (1) 1/4-20×1.5″ UNC (9.5 grams, 6 lb-ft)
    • One (1) M6x1x35mm (9.0 grams, 5 lb-ft)
    • Six (6) #4-40×1/2″ (0.7 grams each, 4.9 in-lbs)
DATASHEET

2235     | Stud Mount Adaptor Block

  • Adaptor to stud mount any SDI module
  • Rugged black anodized aluminum
  • Block mass = 6.2 grams
  • Fasteners Included:
    • One (1) #10-32 Captive Screw (1.4 grams)
    • Three (3) #4-40×1/2″ (0.7 grams each)
DATASHEET

Test Report / Calibration Certificate Samples | Calibration Cert. Test report

Sample Single Axis Module Calibration Certificate
Sample Triaxial Module Calibration Certificate
Sample Accelerometer Test Report

STI Accelerometers (가속도센서)

MEMO

Nominal Sensitivity란?    Nominal sensitivity of an accelerometer defines the deviation specification in what is considered acceptable sensitivity range. For example: if sensitivity is of an accelerometer is defined as +- 10% of 10mV/g, the sensors actual sensitivity after calibration can be anywhere from 9 to 11 mV/g and will meet the specifications for the particular accelerometer. (예를들어, 가속도센서의 감도가 10mV/g에 ±10%라고 하면, calibration후에 실제 감도가 9 ~ 11mV/g 가 될 수 있다는 의미이며, 이것은 가속도센서의 사양을(specification) 를 충족합니다)

Accelerometers | Standard Size

CMCP785A     | General Purpose, Side Exit

  • 100mV/g ±10%
  • 2 Pin MS Connector, Side Exit
  • 1.5Hz to 12kHz (90 to 720k cpm)
  • 2 Second Setting Time
  • -67 to +284° F (-55 to 140° C)
  • 1/4″ x 28 UNF Captive Bolt
  • Class I Division II Approved
  • Lifetime Warranty
DATASHEET

CMCP786A     | General Purpose, Top Exit

  • 100mV/g ±10%
  • 2 Pin MS Connector, Top Exit
  • 1.5Hz to 12kHz (90 to 720k cpm)
  • 2 Second Setting Time
  • -67 to +284° F (-55 to 140° C)
  • 1/4″ x 28 UNF Mounting Stud
  • Class I Division II Approved
  • Lifetime Warranty
DATASHEET

CMCP787A     | Premium, Side Exit

  • 100mV/g ±5%
  • 2 Pin MS Connector, Side Exit
  • 1.5Hz to 12kHz (90 to 720k cpm)
  • 1 Second Setting Time
  • -67 to +284° F (-55 to 140° C)
  • 1/4″ x 28 UNF Captive Bolt
  • Class I Division II Approved
  • Lifetime Warranty
DATASHEET

CMCP788A     | Premium, Top Exit

  • 100mV/g ±5%
  • 2 Pin MS Connector, Top Exit
  • 1.5Hz to 12kHz (90 to 720k cpm)
  • 1 Second Setting Time
  • -67 to +284° F (-55 to 140° C)
  • 1/4″ x 28 UNF Mounting Stud
  • Class I Division II Approved
  • Lifetime Warranty
DATASHEET

Accelerometers | Integral Cable

CMCP1100     | Low Cost

  • Low Cost
  • 100mV/g ±10%
  • 0.32 Hz to 10 kHz (19.2 to 600k cpm)
  • -65 to +185°F (-54 to 85°C)
  • Top Exit Integral Cable
  • 1/4″x28 UNF Mounting Stud
  • 1.5 Second Settling Time
  • 0.5″ Diameter
DATASHEET

CMCP1100HT     | High Temperature

  • High Temperature
  • Small 1/2″ Footprint
  • Top Exit
  • 100 mv/g 10%
  • 0.32 Hz to 10 kHz
  • -65 to +250° Deg. F
  • -54 to 121 Deg. C
  • Integral Cable
  • 1/4″ x 28 UNF Stud
DATASHEET

CMCP1100S     | Low Cost

  • General Purpose
  • Small 1/2″ Footprint
  • Side Exit
  • 100 mV/g 10%
  • 0.32 Hz to 10 kHz
  • -65 to 185 Deg. F
  • -54 to 85 Deg. C
  • Integral Cable
  • 1/4″x28 UNF Stud
DATASHEET

CMCP785A-I     | General Purpose, Side Exit

  • 100mV/g ±10%
  • 2 Pin MS Connector, Top Exit
  • 1.5Hz to 12kHz (90 to 720k cpm)
  • 2 Second Setting Time
  • -67 to +284° F (-55 to 140° C)
  • 1/4″ x 28 UNF Captive Bolt
  • Class I Division II Approved
  • Lifetime Warranty
DATASHEET

CMCP786A-I     | General Purpose, Top Exit

  • 100mV/g ±10%
  • Integral Stainless Steel Overbraided Cable
  • 1.5Hz to 12kHz (90 to 720k cpm)
  • 2 Second Setting Time
  • -67 to +284° F (-55 to 140° C)
  • 1/4″ x 28 UNF Mounting Stud
  • Class I Division II Approved
  • Lifetime Warranty
DATASHEET

CMCP787A-I     | Premium, Side Exit

  • 100mV/g ±5%
  • 2 Pin MS Connector, Side Exit
  • 1.5Hz to 12kHz (90 to 720k cpm)
  • 1 Second Setting Time
  • -67 to +284° F (-55 to 140° C)
  • 1/4″ x 28 UNF Captive Bolt
  • Class I Division II Approved
  • Lifetime Warranty
DATASHEET

CMCP788A-I     | Premium, Top Exit

  • 100mV/g ±10%
  • Integral Stainless Steel Overbraided Cable
  • 1.5Hz to 12kHz (90 to 720k cpm)
  • 1 Second Setting Time
  • -67 to +284° F (-55 to 140° C)
  • 1/4″ x 28 UNF Mounting Stud
  • Class I Division II Approved
  • Lifetime Warranty
DATASHEET

Accelerometers | Compact

CMCP1100C     | Compact, M8 Connector

  • 100mV/g ±10%
  • 3 Pin M8, Top Exit
  • 0.32Hz to 10kHz (19.2 to 600k cpm)
  • 2.5 Second Setting Time
  • -65 to +185° F (-54 to 85° C)
  • 1/4″ x 28 UNF Mounting Stud
DATASHEET

CMCP770A     | Compact, Top Exit

  • 100mV/g ±10%
  • 2 Pin MS Connector, Top Exit
  • 0.8Hz to 19kHz (48 to 1,140k cpm)
  • 1 Second Setting Time
  • -67 to +266° F (-55 to 130° C)
  • 1/4″ x 28 UNF Mounting Stud
  • Class I Division II Approved
  • Lifetime Warranty
DATASHEET

CMCP780A     | Compact, Side Exit

  • 100mV/g ±10%
  • 2 Pin MS Connector, Side Exit
  • 0.8Hz to 19kHz (48 to 1,140k cpm)
  • 1 Second Setting Time
  • -67 to +266° F (-55 to 130° C)
  • 1/4″ x 28 UNF Captive Bolt
  • Class I Division II Approved
  • Lifetime Warranty
DATASHEET

Accelerometers | Dual Output

CMCP785T     | Dual Output, Side Exit

  • 100mV/g ±10%
  • 10mV/°C Temperature Output
  • 3 Pin MS Connector, Top Exit
  • 1.5Hz to 12kHz (90 to 720k cpm)
  • 2 Second Setting Time
  • -67 to +284° F (-55 to 140° C)
  • 1/4″ x 28 UNF Captive Bolt
  • Class I Division II Approved
  • Lifetime Warranty
DATASHEET

CMCP786T     | Dual Output, Top Exit

  • 100mV/g ±10%
  • 10mV/°C Temperature Output
  • 2 Pin MS Connector, Top Exit
  • 1.5Hz to 12kHz (90 to 720k cpm)
  • 2 Second Setting Time
  • -67 to +284° F (-55 to 140° C)
  • 1/4″ x 28 UNF Mounting Stud
  • Class I Division II Approved
  • Lifetime Warranty
DATASHEET

Accelerometers | Biaxial, Triaxial

CMCP1300A     | Triaxial Accelerometer

  • Low Cost
  • 100mV/g ±10%
  • 4 Pin MS Connector
  • 0.32Hz to 10kHz (19.2 to 600k CPM)
  • 2 Second Settling Time
  • 1/4″-28 UNF Captive Bolt
  • Lightweight Aluminum Case
DATASHEET

CMCP760T     | Triaxial, Side Exit

  • 100mV/g ±10%
  • 4 Pin M12, Side Exit
  • 1.5Hz to 12kHz (90 to 720k cpm)
  • 2 Second Setting Time
  • -67 to +284° F (-55 to 140° C)
  • 1/4″ x 28 UNF Mounting Stud
  • Lifetime Warranty
DATASHEET

Accelerometers | Piezo Velocity

CMCP793V     | Top Exit Velocity Transducer

  • 100 mV/In/Sec ±10%
  • 2 Pin MS Connector, Top Exit
  • 2 to 8kHz Frequency Response
  • 2 Second Settling Time
  • -67 to +284° F (-55 to 140° C)
  • 1/4″ x 28 UNF Mounting Stud
  • Class I Division II Approved
DATASHEET

CMCP793V-500     | Piezo Velocity, top Exit

  • 500 mV/In/Sec ±10%
  • 2 Pin MS Connector, Top Exit
  • 2 to 8kHz Frequency Response
  • 2 Second Settling Time
  • -67 to +284° F (-55 to 140° C)
  • 1/4″ x 28 UNF Mounting Stud
  • Class I Division II Approved
DATASHEET

CMCP797V     | Piezo Velocity, Side Exit

  • 100 mV/In/Sec ±10%
  • 2 Pin MS Connector, Side Exit
  • 2 to 8kHz Frequency Response
  • 2 Second Settling Time
  • -67 to +284° F (-55 to 140° C)
  • 1/4″ x 28 UNF Captive Bolt
  • Class I Division II Approved
DATASHEET

CMCP797V-500     | Piezo Velocity, Side Exit

  • 500 mV/In/Sec ±10%
  • 2 Pin MS Connector, Side Exit
  • 2 to 8kHz Frequency Response
  • 2 Second Settling Time
  • -67 to +284° F (-55 to 140° C)
  • 1/4″ x 28 UNF Captive Bolt
  • Class I Division II Approved
DATASHEET

Accelerometers | 4-20 mA (Accelerometer + Transmitter into one Housing)

CMCP420VT     | Loop-Powered Vibration Transmitter

  • Integral Sensor
  • 4-20 mA Output
  • Dynamic Signal Output
  • UL and CSA Approved Class 1, Division 2, Group B-D
  • CE Approved
  • RoHS Compliant
DATASHEET

CMCP420VT-T     | Dual Parameter Loop-Powered Vibration and Temperature Transmitter

  • Dual Parameter (Vibration and Temperature)
  • Solid State Reliability
  • 2-Wire Loop Powered (4-20 mA)
  • 3/4″ NPT for Conduit Connections
  • Industry Standard 1/4″x 28 UNF Stud Mounting
  • Optional Display
  • UL and CSA Approved Class 1, Division 2, Group B-D
  • CE Approved
  • RoHS Compliant
DATASHEET

CMCP422VT Series    | Loop-Powered Velocity Transmitter

  • Low Cost
  • Vibration Velocity RMS or Peak Detection
  • Top Exit 2 Pin Mil-Spec 5015 Connector
  • Optional 5 Meter Armored Integral Cable
  • Rugged Design
  • Loop Powered 4-20 mA
  • Interfaces Directly to PLC/DCS Systems
  • Two Ranges Available
  • Operating Temperature Range: -13 to +194degrees F (-25 to 90 degrees C)
  • 1/4″ x 28 UNF Mounting Stud
  • Optional Armored Integral Cable
DATASHEET

CMCP422VTS Series     | Loop Powered Side Exit Velocity Transmitter

  • Low Cost
  • Vibration Velocity RMS or Peak Detection
  • Side Exit 2 Pin Mil-Spec 5015 Connector
  • 3 Connector Options
  • Rugged Design
  • Loop Powered 4-20 mA
  • Interfaces Directly to PLC/DCS Systems
  • Two Ranges Available
  • Operating Temperature Range: -13 to +194 degrees F (-25 to 90 degrees C)
  • 1/4″ x 28 UNF Mounting Stud
  • Optional Armored Integral Cable
DATASHEET

CMCP422AT Series    | Loop-Powered Acceleration Transmitter

  • Low Cost
  • Vibration Acceleration RMS or Peak Detection
  • Top Exit 2 Pin Mil-Spec 5015 Connector
  • Optional 5 Meter Armored Integral Cable
  • Rugged Design
  • Loop Powered 4-20 mA
  • Interfaces Directly to PLC/DCS Systems
  • Two Ranges Available
  • Operating Temperature Range: -13 to + 194 degrees F (-25 to 90 degrees C)
  • 1/4″ x 28 UNF Mounting Stud
DATASHEET

CMCP422ATS Series     | Loop Powered Side Exit Acceleration Transmitter

  • Low Cost
  • Vibration Acceleration RMS or Peak Detection
  • Top Exit 2 Pin Mil-Spec 5015 Connector
  • Optional 5 Meter Armored Integral Cable
  • Rugged Design
  • Loop Powered 4-20 mA
  • Interfaces Directly to PLC/DCS Systems
  • Two Ranges Available
  • Operating Temperature Range: -13 to +194 degrees F (-25 to 90 degrees C)
  • 1/4″ x 28 UNF Mounting Stud
DATASHEET

CMCP423VTA    | Compact Vibration Switch

  • Low Cost, Compact Vibration Switch
  • 4-20mA and Relay Output
  • Vibration Velocity RMS
  • 1.0 or 2.0 Ranges (25.4 or 50.8mm/sec)
  • 10 to 1kHz Frequency Response
  • Adjustable Alarm Level (0-100% Full Scale)
  • Adjustable Time Delay (0-60 Seconds)
  • Locking Adjustments
  • 4 Pin Eurofast Connector
  • IP67 Rated
DATASHEET

CMCP420XPHD     | Explosion Proof Head For CMCP420VT

  • Explosion Proof Head for CMCP420VT Loop Powered Transmitter. The CMCP420VT Transmitter equipped with the CMCP420XP Explosion Proof Head will make it rated for Class I Division I areas.
DATASHEET

CMCP420BNC    | BNC Adapter for CMCP420VT

  • 90 Degree 3/4” NPT conduit elbow with a BNC connector to access the raw acceleration signal. This is useful for connection to portable data collectors.
DATASHEET

CMCP420EL     | 90 Degree 3/4″ x 3/4″ NPT Elbow for CMCP420VT

  • Accessory for the CMCP420VT Series Vibration Transmitters
  • Useful for connecting CMCP420VT to hard or flexible conduit. When used with the CMCP420-WF, provides a simple weatherproof exit for the instrument wire.
DATASHEET

CMCP420LED    | LCD Display

  • The display for the CMCP420VT is loop powered display that shows the actual vibration levels in velocity on an easy to read LCD or LED display. The display also includes a BNC connector that provides access to the raw acceleration signal. This is useful for connection to portable data collectors. The temperature readout is designed for use with the CMCP420VT-T Dual Parameter Vibration and Temperature Transmitter. The temperature display does not include a BNC output.
DATASHEET

CMCP420WF     | 3/4″ NPT Weatherproof Cable Fitting for CMCP420VT

  • The CMCP420WF Waterproof Cable Fitting when used with the CMCP420LED, CMCP420BNC or CMCP420EL provides a waterproof instrument wire exit.
DATASHEET
