Inclinometers | High Precision gravity Referenced Servo Inclinometer and MEMs Inclinometer

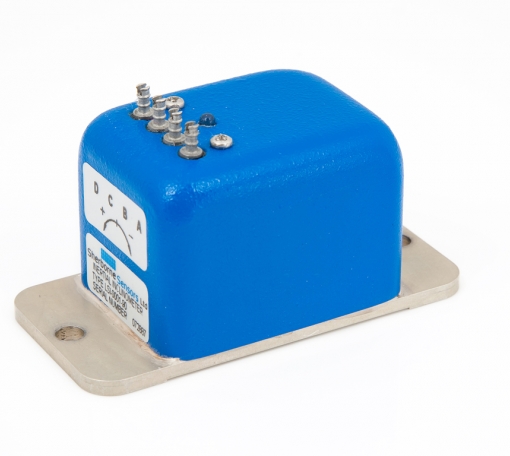

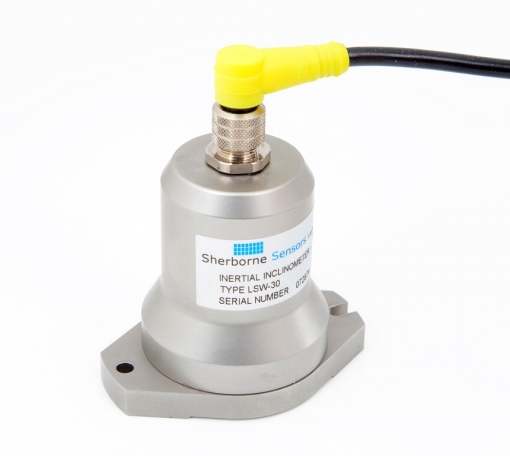

LSI Series     | DC-Operated, Gravity Referenced Servo Inclinometer, ±14.5° to ±90°

  • ±14.5°, ±30°, ±90° available
  • Full Range Output (FRO): ±5 Vdc
  • Non-Linearity: 0.02-0.05% FRO
  • IP64
  • Operating Temperature Range: -20 to 80°C
DATASHEET

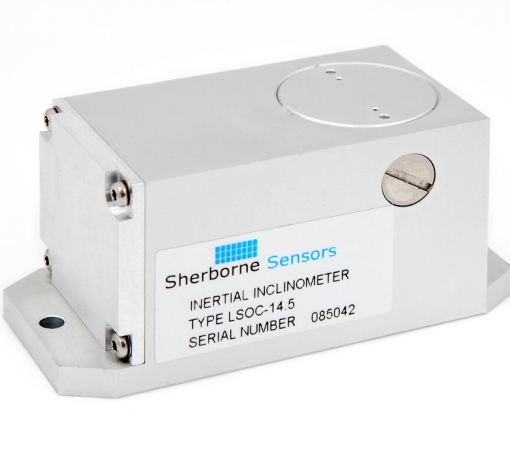

LSOC/P     | DC-Operated, Gravity Referenced Servo Inclinometer, ±1° to ±90°

  • ±1°, ±3, ±14.5°, ±30°, ±90° available
  • Full Range Output (FRO): ±5 Vdc
  • Extremely rugged, withstands 1500g shock
  • IP65
  • Operating Temperature Range: -18 to 70°C
DATASHEET

LSOC/P     | ‘L’ Single Axis Rugged Servo Inclinometer, ±3° to ±90°

  • ±3, ±14.5°, ±30°, ±90° available
  • Full Range Output (FRO): ±16 Vdc
  • Resolution to 0.1arc second (0.00003°)
  • Non-Linearity: 0.02-0.08% FRO (max)
  • Extremely rugged, withstands 1500g shock
  • IP65
  • Operating Temperature Range: -18 to 70°C
DATASHEET

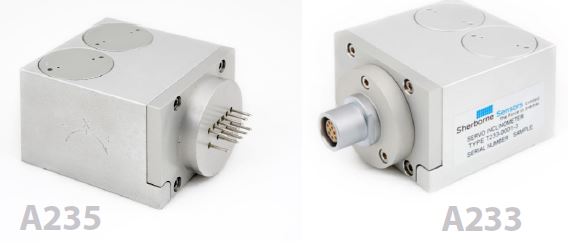

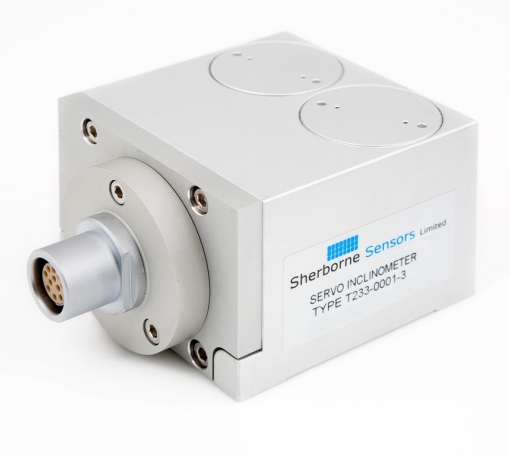

T233/T235     | Dual Axis Rugged Servo Inclinometer, ±1° to ±90°

  • ±1°, ±3, ±14.5°, ±30°, ±90° available
  • Full Range Output (FRO): ±5 Vdc
  • Resolution to 0.1arc second (0.00003°)
  • Shock Survival: 1250g, 0.5msec, ½ sine
  • IP65
  • Operating Temperature Range: -18 to 70°C
DATASHEET

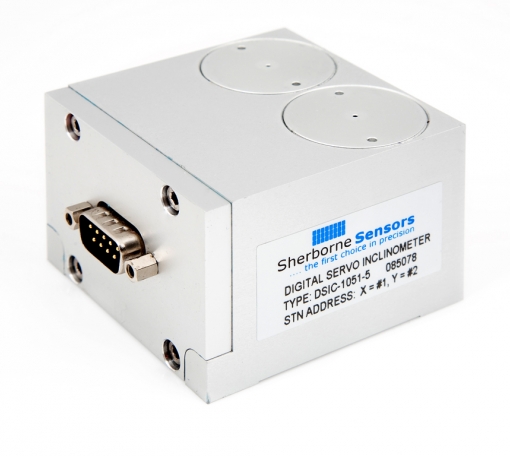

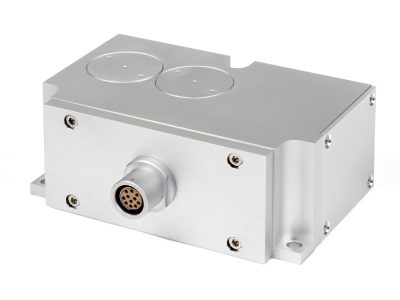

DSIC     | Digital Inclinometer, Single and Dual Axis Rugged Servo Inclinometer, ±5°, ±15°, ±60°

  • ±5, ±15°, ±60° available
  • 19-bit analog to digital conversion
  • Total accuracy < 0.08° over -20°C to +70°C
  • Resolution 0.001°
  • Mechanical shock 1,000g 0.5ms half sine
  • Closed loop servo inclinometer sensing element
  • IP65
  • Operating Temperature range: -40 to 80°C
DATASHEET

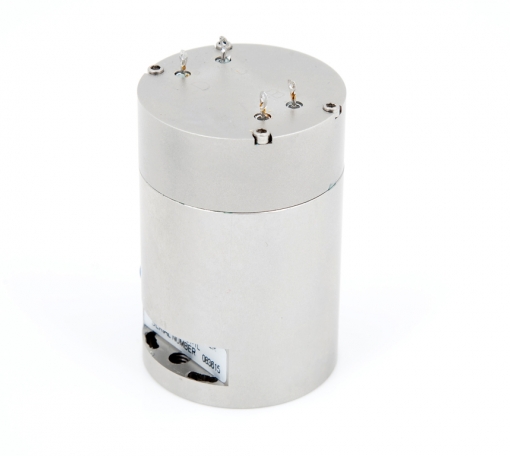

T435 ‘L’Series    | Current Output, Single Axis, Servo Inclinometer, ±3° to ±90°

  • ±3, ±14.5°, ±30°, ±90° available
  • Current Output: 4-20mA
  • Resolution to 0.2arc second (0.00006°)
  • Rugged, 1500g shock survivability
  • Electrical terminations via solder pins
  • IP65
  • Operating Temperature range: -18 to 70°C
DATASHEET

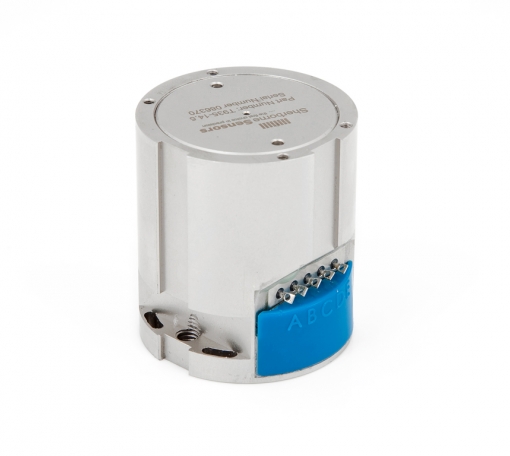

T935     | DC-Operated, Gravity Referenced Servo Inclinometer, ±1° to ±90°

  • ±1, ±3°, ±14.5°, ±30°±90° available
  • Full Range Output (FRO): ±5 Vdc
  • Non-Linearity: 0.02-0.08% FRO
  • Stackable for dual axis X and Y measurements
  • Extended pins with chamfered housing edge for ease of soldering
  • Shock Survival: 1500g, 0.5 ms, ½ sine
  • IP65
DATASHEET

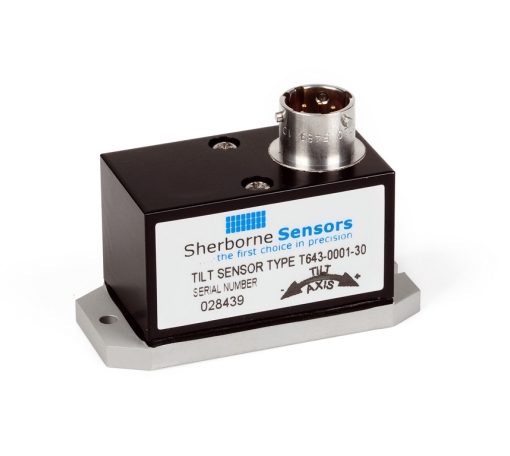

T640     | Low Cost MEMs Inclinometer with unfiltered and low pass filter outputs

  • ±30°, ±60°, ±90° available
  • Full Range Output (FRO): ±5V dc ±2%
  • Resolution: ≤ 0.001% FRO
  • Shock Survival: 200g for 2ms (½ sine wave)
  • IP65
  • Operating Temperature Range: -40 to 100°C
DATASHEET

Accelerometers | High Precision Servo Accelerometer & MEMs

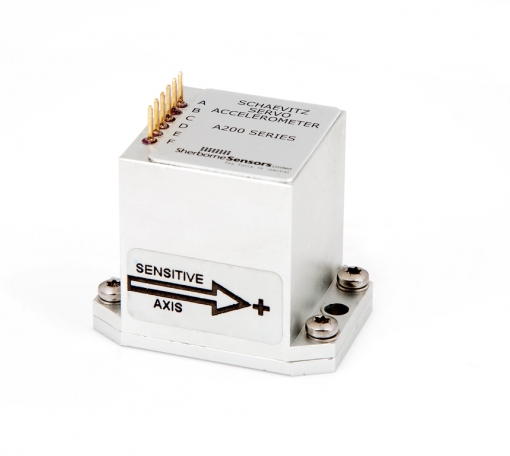

A215     | Miniature Linear Servo Accelerometer

  • ±0.5g, ±1g, ±2g, ±5g, ±10g, ±20g available
  • Full Range Output (FRO): ±5V dc
  • Resolution: 0.0005 % FRO
  • Shock: 100g, 11ms ½ sine
  • IP65
  • Operating Temperature Range: -55 to 95°C
DATASHEET

A220     | Miniature Linear Servo Accelerometer

  • ±0.5g, ±1g, ±2g, ±5g, ±10g, ±20g available
  • Full Range Output (FRO): ±5V dc
  • Resolution: 0.0005 % FRO
  • 1g bias option to compensate for earth’s gravity (A220 only)
  • Operating Temperature Range: -55 to 95°C
DATASHEET

A320 Series     | Ultra-Low Range Linear Servo Accelerometer, ±0.1g to ±2g

  • ±0.1g, ±0.25g, ±0.5g, ±1.0g, ±2.0g available
  • Full Range Output (FRO): ±5Vdc (option of ±10Vdc)
  • Non-Linearity: 0.05% FRO (max)
  • Resolution:  0.0005% FRO (min)
  • Shock Survival: 1500g, 0.5msec, ½ sine
  • IP65
  • Operating Temperature Range: -18 to 70°C
DATASHEET

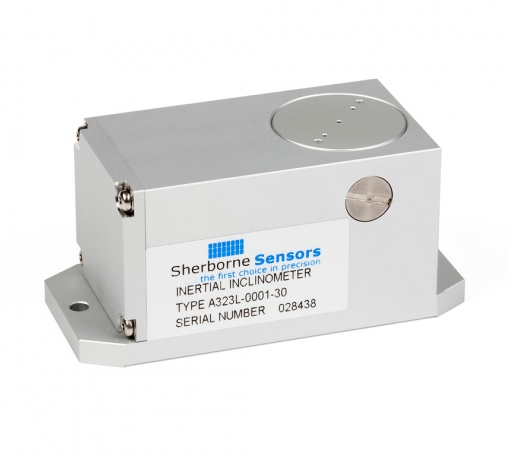

A320 ‘L’ Series     | Ultra-Low Range Linear Servo Accelerometer with 4-20mA output, ±0.1g to ±2g

  • ±0.1g, ±0.25g, ±0.5g, ±1.0g, ±2.0g available
  • Full Range Output (FRO): 4 to 20 mA
  • Non-Linearity: 0.08% Reading (max)
  • Resolution:  0.01% FRO (Max)
  • Shock Survival: 1500g, 0.5msec, ½ sine
  • IP65
  • Operating Temperature Range: -18 to 70°C
DATASHEET

A260 Series    | Single Axis Servo Accelerometer, ±1g to ±20g

  • ±1g, ±2g, ±5g, ±10g, ±20g available
  • Full Range Output (FRO): ±5V DC
  • Non-Linearity: ≤ ±0.05-0.10% FRO (max)
  • Resolution:  0.0005 % FRO (max)
  • Shock: 100g, 11ms ½ sine
  • IP65
  • Operating Temperature Range: -55 to 95°C
DATASHEET

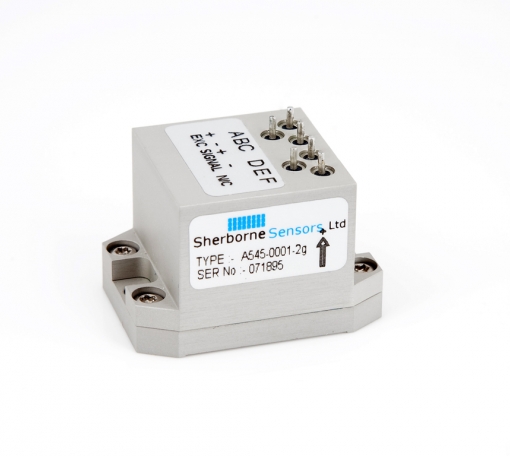

A545 Series     | DC-Operated, Single Axis Linear Accelerometer, ±2g to ±100g

  • ±2g, ±5g, ±10g, ±20g, ±50g, ±100g available
  • MEMS micromachined piezo-resistive strain gauge bridge silicon sensor
  • A gas damping and positive over-range stops
  • Nonlinearity: ≤ ±0.5% FRO
  • DC input – DC output
  • Resolution: ≤ 0.0005% FRO
  • Acceleration limit: 400g for 2 to 10 g versions, 20 x range or 2000g, whichever is lower for other versions (any direction)
  • IP65
  • Operating Temperature Range: -40 to 105°C
DATASHEET

A545 Series     | DC-Operated, Bi-Axial & Tri-Axial Linear Accelerometer, ±2g to ±100g

  • ±2g, ±5g, ±10g, ±20g, ±50g, ±100g available
  • MEMS micromachined piezo-resistive strain gauge bridge silicon sensor
  • A gas damping and positive over-range stops
  • Nonlinearity: ≤ ±0.5% FRO
  • DC input – DC output
  • Resolution: ≤ 0.0005% FRO
  • Acceleration limit: 400g for 2 to 10 g versions, 20 x range or 2000g, whichever is lower for other versions (any direction)
  • IP65
  • Operating Temperature Range: -40 to 105°C
DATASHEET

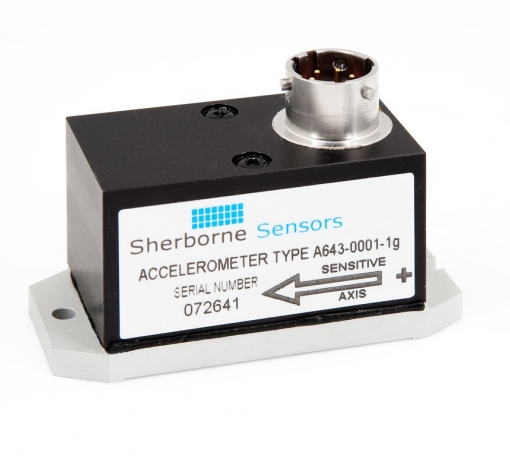

A640     | Single Axis MEMs Accelerometer, ±1g to ±20g

  • ±1g, ±2g, ±3g, ±5g, ±10g, ±20g available
  • Unlike fluid damped devices the air damping employed
  • Full Range Output (FRO): ±5V DC ±2%
  • Non-Linearity: ≤ ±0.5% FRO
  • Resolution:  ≤ 0.001% FRO
  • Shock: 200g for 2ms (½ sine wave)
  • IP65
  • Operating Temperature Range: -40 to 100°C
DATASHEET

Vigor Technology

MEMS Inclinometer | Variety Output

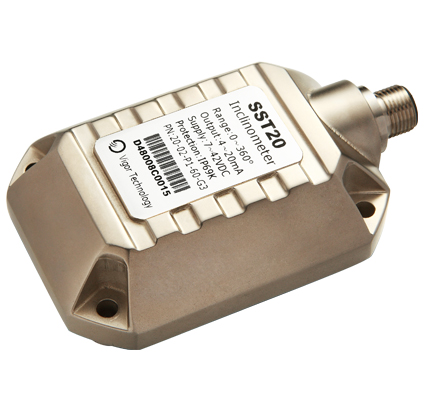

SST20     | Low cost, High performance

  • Range: 0~360°
  • Accuracy: ±0.07°@-15~50℃, Resolution: 0.01°
  • 50Hz refresh rate, 10Hz response frequency
  • ±0.2% cross-axis error
  • Available to horizontal, vertical, headstand, etc installation methods
  • IP67protection
  • 9~36VDC power supply
  • Sensing elements survive to 1500g shock while operating
DATASHEET

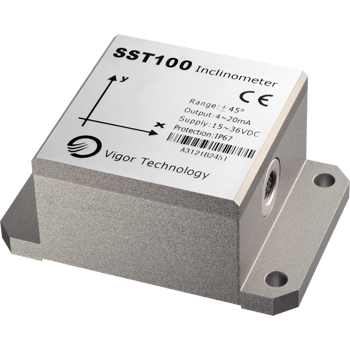

SST100     | High stability

  • Range: ±180°
  • Accuracy: ±0.05°, Resolution: 0.01°
  • Cross-axis sensitivity up to ±0.3%FS
  • Omni-direction alarm & dual alarms,analog & digital outputs
  • Full-seal,resistant to vibration and shock
  • IP67 protection
DATASHEET

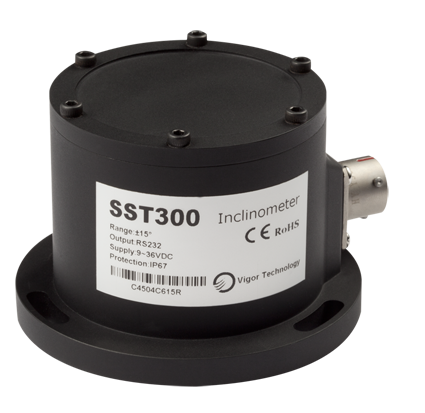

SST300     | Inclinometer

  • Range: ±60°
  • Accuracy: ±0.01°, Resolution: 0.0025°
  • Absolute accuracy combined with absolute linearity,cross axis sensitivity, offset, repeatability, hysteresis
  • Cross-axis sensitivity ≤±0.1%FS
  • Offset ≤±0.005°
  • Precise installation & higher actual accuracy
  • Adjustable vibration suppression while running
  • Temperature drift accuracy(optional):±0.05°@-40~+85℃
  • Various output interfaces
  • EMC certificated
DATASHEET

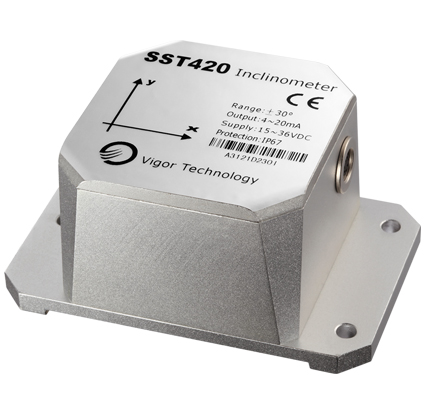

SST400     | Inclinometer

  • Range: ±30°
  • Accuracy: ±20″, Resolution: 2″
  • Adjustable filter to absorb vibration
  • Available to modify with local gravity value
  • Mostly compatible to SST300’s accessories and options (90 types)
  • Cross-axis sensitivity≤±0.2%FS
  • ±9”offset repeatability
  • Refer to about 50 industry & military standards
  • Military class product available
DATASHEET

CAN     | Inclinometer

  • Range: ±60°
  • Accuracy: ±0.01, Resolution: ±0.0025°
  • ISO11898-2 standard, twisted-pair output
  • Protocol stack follows CAN2.0A, CAN2.0B
  • Built-in high-speed optoelectronic isolation
  • Support 5K-1000Kbps total 15 kinds of CiA recommended Baud rate
  • Distance achieves 10 Km, can connect 127 units
DATASHEET

CANopen     | Inclinometer

  • Range: ±60°
  • Accuracy: ±0.015°, Resolution: ±0.0025°
  • Protocol stack follows CANopen documents: DS301,DS303,DS305 standard; and meets the Device profile CiA DSP-410
  • Slave station configuration protocol
  • Process Data Objects (TPDO and RPDO) and service Data objects (SDO server / SSDO)
  • Emergency message object (Emergency ) and sync message object (Sync)
  • Network configuration object (LSS slave station)
  • Support baud rate 5Kbps~1Mbps
  • Patented tilt measurement technology to realize real high accuracy
DATASHEET

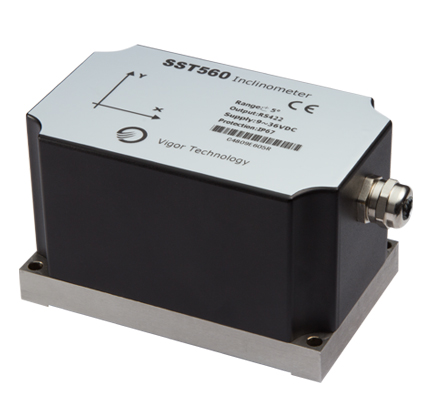

RS Tilt    | Inclinometer

  • Range: ±60°
  • Accuracy: ±0.01, Resolution: ±0.0025°
  • Standard industrial interface, support for ModBus protocol, or custom HEX protocol, ASCII protocol
  • Half-duplex, full-duplex, point-to-point, point-to-multipoint transmission
  • Transfer rate up to 500Kbps
  • Transmission distance is up to 1,200 meters
  • Networkable, bus support up to 256 nodes
  • ±10KV electrostatic interface protection design, strict anti-electromagnetic interference design
DATASHEET

Ethernet     | Inclinometer

  • Range: ±60°
  • Accuracy: ±0.01, Resolution: ±0.0025°
  • 10/100M self-adaptive Ethernet Interface
  • Support ATUO MDI/MDIX, allowing crossover cable connection or straight-through cable connection
  • Selectable Baud rate between 1200bps and 115200 bps
  • Selectable working modes,such as TCP Server, TCP Client,UDP, Real COM driver;also,in these modes, most of the parameters, such as Multicasting address, working port, destination port, destination IP, and port number are configurable by user
  • Build-in WEB server,allowing users to download their configuration webpage easily
DATASHEET

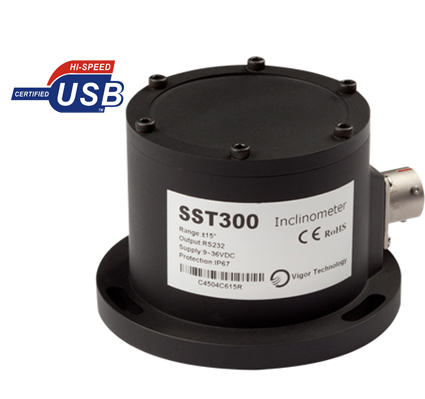

USB     | Inclinometer

  • Range: ±60°
  • Accuracy: ±0.015°, Resolution: 0.0025°
  • Reference with USB2.0 protocol
  • P2P and compatible with any USB port
  • USB bus power supply, no need external battery
  • Patent tilt measuring technical, real high accuracy
  • Provide multi-function PC software, easy to debug & acquire
  • Intelligent AIS & data transmission control system.
  • Support 1Mbp/s(optional 12Mb/s) transmission speed
  • ±8KV electrostatic interface protection and anti-electromagction netism interference design
  • Support Windows98/Windows2000/ Windows XP/ Vista/Win7/Linux system
DATASHEET

Profi-bus    | Inclinometer

  • Range: ±60°
  • Accuracy: ±0.01, Resolution: ±0.0025°
  • Compliant with EN50170 V2 and IEC61158 standards, twisted pair
  • Support for Profibus-DP slave protocol
  • Maximum 12Mbps transmission, baud rate adaptation
  • Isolation of the Profi-bus interface for enhanced ESD protection
  • Profibus-DP user parameterization can be implemented to improve bus efficiency
DATASHEET

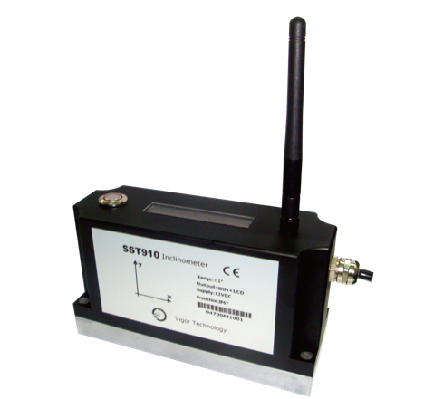

Wi-Fi     | Inclinometer

  • Range: ±60°
  • Accuracy: ±0.015°, Resolution: 0.0025°
  • Based on high performance SST300 inclinometer
  • According to IEEE802.11b/g, Wi-Fi compatible
  • Support topology & AP etc. network types
  • High speed transmission and security
  • 2.4G ISM band
  • RF certifi cated by FCC, CE…
  • Operation temperature: -40~80℃
  • Radio range up to 200m
  • Customized wireless sensor network (WSN), 256 nodes coverage
DATASHEET

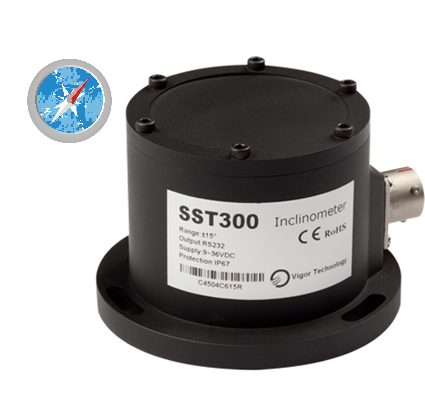

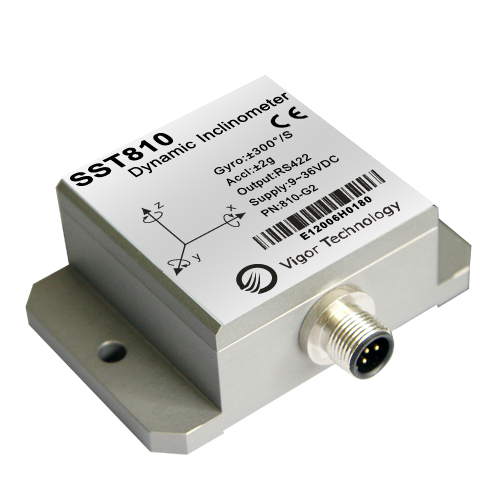

Ranged     | Inclinometer

  • Measuring three-dimensional angle information: roll, pitch and heading
  • Maximum measuring range for roll/pitch angle: ±60°
  • Heading accuracy ±5°RMS@≤±30°, resolution 0.01°
  • Tilt repeatability accuracy±0.0025°
  • Refresh rate 5~20Hz
  • Customized higher accuracy and dynamic nature products
  • Patented tilt measurement technology to realize real high accuracy
DATASHEET

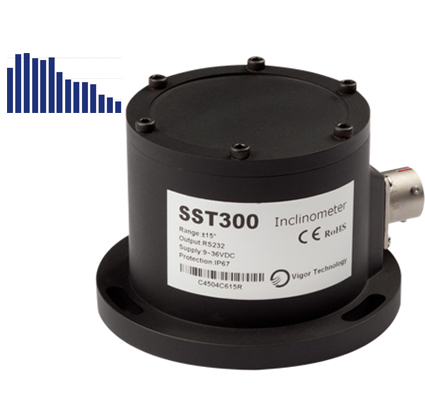

FFT     | Inclinometer

  • Range: ±60°
  • Accuracy: ±0.01, Resolution: ±0.0025°
  • Simultaneously measuring inclination and vibration value,can be real-time and post-processing
  • Tri-axis 0~±20g vibration detection, frequency response ≤5 kHz
  • Programmable filter, 11 rate settings
  • Real-time FFT, 512 points
  • Programmable FFT averaging, programmable alarms,6 spectral bands
  • Can inhibit vibration acceleration interference
  • Patented real high accuracy inclination measuring
  • Highest combined absolute accuracy ±0.01°@25℃
  • Customizable all kinds of low-frequency vibration tilt products
DATASHEET

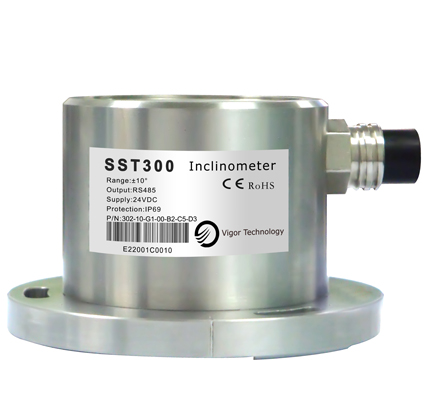

Subsea / Submersible    | Inclinometer

  • Range: ±60°
  • Accuracy: ±0.01°, Resolution: ±0.0025°
  • 3000m submersible depth
  • Combined accuracy: ±0.01°
  • ±0.1%FS Cross-axis sensitivity
  • Special underwater connector
  • Resistance to acid and alkali salt corrosion
  • Reduce installation error via “Allowed Input axis misalignment”
DATASHEET

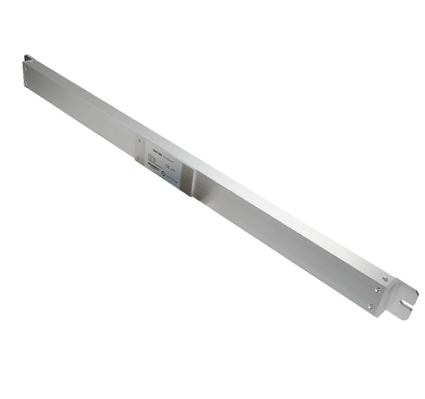

Tilt Beam Sensor     | High resolution

  • Range: ±15°
  • Accuracy: ±0.015°, Resolution: 0.0025°
  • High resolution, accuracy & stability
  • High safety remote signal transmission distance>500m
  • U-Shaped openings in both ending, easy to connect sensors
  • IP65protection
  • Alloyed & anodized aluminum housing, corrosion-resistant,wear-resistant, artistic

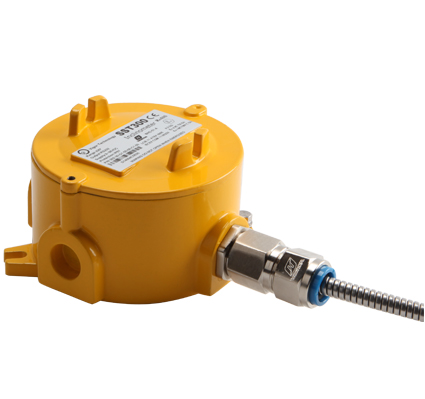

DATASHEET

Explosion-Proof     | Inclinometer

  • Range: ±60°
  • Accuracy: ±0.01, Resolution: ±0.0025°
  • Real high accuracy & long-term stability
  • Armored cable, Anti-pull, wear & corrosion resistance and so on
  • Compliance with standards of CENELEC, IEC and NEC
  • EXdIICT6 explosion-proof , IP66 protection
  • Aluminum alloy housing, Low cost

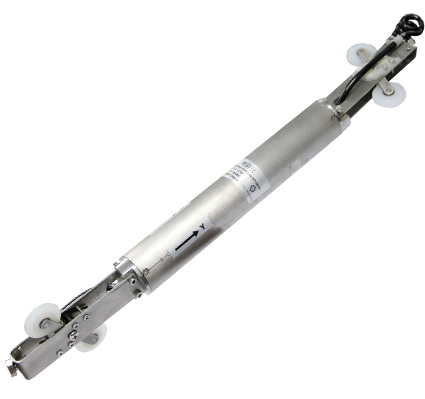

DATASHEET

In-Place Slope    | Inclinometer

  • Measurement Range: ±15°(maximum), dual or single axis
  • Accuracy: ±0.005°, Resolution: 0.002°
  • Standard RS485 industrial bus interface, internal electrical isolation.
  • Temperature measuring accuracy:±0.5℃, resolution: 0.1℃
DATASHEET

Servo Inclinometer | High reliability & flexibility

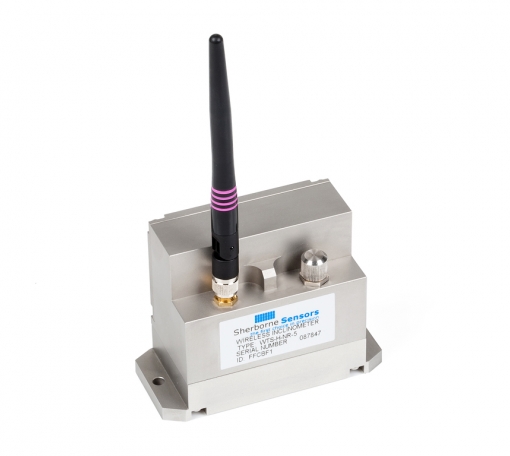

Levelmeter | Wi-Fi

DATASHEET

TE Tilt Sensors & Inclinometers (경사센서)

Single Axis | 1축 경사센서

AccuStar-EA Series    | Single Axis to ±65° Voltage 경사센서

  • Measurement Principle : MEMS
  • Total range :  ±65°
  • Package : Plastic Housing
  • Mounting : Vertical
  • Operating Temperature (°C): -40 – 80

DATASHEET

AccuStar Series    | Single Axis to ±60° Voltage 경사센서

  • Measurement Principle : Fluid
  • Total range :  ±60°
  • Resolution : 0.001°
  • Ratiometric and Bipolar DC models
  • Package : Plastic Housing
  • Mounting : Vertical
  • Operating Temperature (°C): -40 – 80

DATASHEET

AccuStar IP Series    | Single Axis to ±45° 4-20mA 경사센서

  • Measurement Principle : Fluid
  • Total range :  ±3° to ±45°
  • Package : Industry Housing
  • Mounting : Vertical
  • IP-66 rated
  • Operating Temperature (°C):  -25° to +60°C

DATASHEET

AccuStar Protractor System    | Single Axis Digital Protractor System

  • Measurement Principle : Fluid
  • Total range :  ±19.99°, ±45.0°, 0~90°
  • Battery or external powered
  • Package : Plastic Housing
  • Mounting : Vertical
  • Operating Temperature (°C): -25 – 85

DATASHEET

DOG1 Series     | Single Axis to  ±180, 0.5-4.5V

  • Measurement Principle : MEMS
  • Package : Plastic Housing
  • Mounting : Horizontal
  • 8-30 VDC supply voltage
  • Output : 0.5 to 4.5 V
  • Operating Temperature (°C): -40 – 85

DATASHEET

DOG1 with USB     | Single Axis USB RS232 경사센서

  • Measurement Principle : MEMS
  • Range : ±180°
  • Resolution : 14 bit
  • Output : X- or Y-angles (Via USB virtual COM port on Host PC)
  • Package : Plastic Housing
  • Mounting : Horizontal
  • Operating Temperature (°C): -40 – 85

DATASHEET

E-Series     | Single Axis +/-15, +/-1.5V

  • Measurement Principle : Fluid
  • Measurement range +/-5° or +/-15°
  • Analogue voltage output
  • Package : Ceramic Housing
  • Mounting : Horizontal
  • Operating Temperature (°C): -25 – 85

DATASHEET

G-Series     | Single Axis 240° Tilt Switch

  • Measurement Principle : Fluid
  • Range : ±10°
  • Switch output
  • Package : Industry Housing
  • Mounting : Vertical
  • Operating Temperature (°C): -40 – 85

DATASHEET

Dual Axis | 2축 경사센서

DOG2     | Dual Axis ±90 0.5-4.5V

  • Measurement Principle : MEMS
  • Measurement ranges : ±25°, ±45° and ±90°
  • Output: 0.5 to 4.5 V
  • Package : Plastic Housing
  • Mounting : Horizontal
  • Operating Temperature (°C): -40 – 85

DATASHEET

DOG2 Series CAN J1939     | Dual Axis CAN J1939 MEMS

  • Measurement Principle: MEMS
  • Measurement ranges ±90°
  • 12 bit resolution
  • CAN J1939 interface
  • Package: Plastic Housing
  • Mounting: Horizontal
  • Operating Temperature(°C): -40 – 85

DATASHEET

DOG2 Series with USB     | Dual Axis ±90 USB RS232

  • Measurement Principle : MEMS
  • Measurement range ±90°
  • Output : X- & Y-angles (Via USB virtual COM port on Host PC)
  • Package : Plastic Housing
  • Mounting : Horizontal
  • Operating Temperature (°C): -40 – 85

DATASHEET

AAL Series     | Dual Axis to ±30°

  • Measurement Principle : Fluid
  • Measurement range : ±2, ±5, ±10, ±15, ±30°
  • Non-linearity : 1.5% [FS]
  • Analog output : 0.3 – 4.7V
  • Package : Board Level
  • Mounting : Horizontal
  • Operating Temperature (°C): -40 – 85

DATASHEET

DPL/DPN Series     | Dual Axis to ±30° 0.3-4.7V

  • Measurement Principle : Fluid
  • Measurement range : ±2, ±5, ±10, ±15, ±30°
  • Resolution : 0.001°
  • Digital output : TTL,RS232,SPI
  • Analog output : 0.3 – 4.7V
  • Package : Board Level
  • Mounting : Horizontal
  • Operating Temperature (°C): -40 – 85

DATASHEET

E2 Series     | Dual Axis ±45 ±2V

  • Measurement Principle : Fluid
  • 측정범위 (°): ±5, ±10, ±15, ±45
  • Non-linearity : 1.5%[FS]
  • Package : Board Level
  • Mounting : Horizontal
  • Operating Temperature (°C): 0 – 70

DATASHEET

D Series     | Dual Axis to ±30° 0.5-4.5V

  • Measurement Principle : Fluid
  • Measurement range : ±5, ±15, ±30°
  • Analog output : 0.5 – 4.5V
  • Package : Industry Housing
  • Mounting : Horizontal
  • Operating Temperature (°C): -40 – 85

DATASHEET

DPG Series     | Dual Axis ±30 0.3-4.7V

  • Measurement Principle : Fluid
  • 측정범위 (°): ±5, ±10, ±15, ±30
  • Resolution : 0.001°
  • RS 232 and voltage output
  • Package : Industry Housing
  • Mounting : Horizontal
  • Robust IP67/68 housing
  • Operating Temperature (°C): -40 – 85

DATASHEET

P Series     | Dual Axis to ±45° RS232

  • Measurement Principle : Fluid
  • Measurement range : ±5, ±15, ±45°
  • Digital and analogue output signal
  • Package : Robust metal housing
  • Mounting : Horizontal
  • Operating Temperature (°C): -25 – 85

DATASHEET

V Series     | Dual Axis ±45 Voltage

  • Measurement Principle : Fluid
  • 측정범위 (°): ±5, ±15, ±45
  • Analogue voltage or current output signal
  • Package : Industry Housing
  • Mounting : Horizontal
  • Protection class IP 65
  • Operating Temperature (°C): 0 – 70

DATASHEET
