Data Acquisition (DAQ), Data Logger | USB, Ethernet, Wireless

 ModelChannelMeasurement RangeSample RateResolutionChannelStretch
(확장기능)		StandAloneFeature
DI-11004 differential±10 V fixed20-40 kHz sample rate per channel12 bit
DI-11108 differential±10 V fixed160 kHz sample rate12 bit7 digital I/O ports with rate and count
DI-4208-U4 or 8 differential±2V to ±100V 160 kHz sample throughput rate16 bitYesYes(option): USB thumb drive7 digital I/O ports with rate and count.
replacement of DI-1120
DI-21088 differential±10VUp to 220 kHz throughput16 bitYesYes(option): USB thumb drive7 digital I/O ports with rate and count
DI-41088 differential±200mV to ±10V 160 kHz analog throughput rate16 bitYesYes(option): USB thumb drive7 digital I/O ports with rate and count
DI-42088 differential±2 to ±100 V160 kHz throughput16 bitYesYes(option): USB thumb drive7 digital I/O ports with rate and count
DI-2108-P8 differential±2.5, ±5, ±10, 0-5, 0-10 Volts160 kHz throughput16 bitYes7 digital I/O ports with rate and count
DI-1608 channelsany ±300V or 230 VAC rms sourceYesEvent, State, and Count Data Logger
DI-20088 differential±10mV to ±50V
TC and Votage DAQ		2000 Hz (single channel), 200 Hz throughput (two or more channels)16 bitYes7 digital I/O ports with rate and count.
replacement of DI-245
DI-710-UH16 analog inputs±1.25 V to ±10 V4800 Hz max sample rate14 bit
DI-710-UL16 analog inputs±10 mV to ±10 V4800 Hz max sample rate14 bit
DI-710-UHS16 analog inputs±1.25 V to ±10 V14.4 kHz max sample rate14 bitYes
DI-710-ULS16 analog inputs±10 mV to ±10 V14.4 kHz max sample rate14 bitYes
DI-4718B-U8 analog inputsisloated module에 따라서 결정160,000 Hz sample Throughput rate16 bitYesYes (USB flash drive)
DI-718B-U8 analog inputsisloated module에 따라서 결정4800 Hz max sample rate14 bit
DI-718B-US8 analog inputsisloated module에 따라서 결정Up to 14.4 kHz max sample rate14 bitYes(option)
DI-5001-U532 analog inputs±0.625 to ±5 V200 kHz sample rate16 bit (Analog Inputs)
12 bit (Analog Outputs)
DI-5001-U1032 analog inputs±1.25 to ±10 V200 kHz sample rate16 bit (Analog Inputs)
12 bit (Analog Outputs)
DI-720-USB32 analog inputs±1.25 to ±10 V200 kHz max sample rate14 bit
DI-722-32-USB32 differential analog inputs±2.5 to ±20 V50 kHz max sample rate14 bit
DI-730-USB8 isolated wide range channels±10mV to ±1000VDC (or peak AC)150 kHz max sample rate14 bit
 ModelChannelMeasurement RangeSample RateResolutionChannelStretch
(확장기능)		StandAloneFeature
DI-710-EH16 analog inputs±1.25 to ±10 V4800 Hz max sample rate14 bit
DI-710-EL16 analog inputs±10mV to ±10V4800 Hz max sample rate14 bit
DI-1618 discrete and isolated input channels240 V rms c signal rangeMeasures when, how long, and how many events occur
DI-710-EHS16 analog inputs±1.25 to ±10 V 14.4 kHz max sample rate14 bitYesRecords to PC or SD memory
DI-710-ELS16 analog inputs±10mV to ±10V14.4 kHz max sample rate14 bitYesRecords to PC or SD memory
DI-718B-E8 analog inputsUses isolated 8B amplifier modules4800 Hz max sample rate14 bit
DI-718B-ES8 analog inputsUses isolated 8B amplifier modules14.4 kHz max sample rate14 bitYesRecords to PC or SD memory
DI-8088 differentialsTC, mV, V, pulse inputs25 mS to 1 hour16 bit
DI-718Bx16 analog inputsUses isolated 8B amplifier modules4800 Hz max sample rate14 bit
DI-5001-E532 analog inputs±0.625 to ±5 V160 kHz sample rate
16 bitdistributed synchronized operation
DI-5001-E1032 analog inputs±1.25 to ±10 V160 kHz sample rate
16 bitdistributed synchronized operation
DI-718BxS16 analog inputsUses isolated 8B amplifier modules14.4 kHz max sample rate14 bitYesRecords to PC or SD memory
DI-720-EN32 analog inputs±1.25 to ±10 V160 kHz max sample rate14 bitdistributed synchronized operation
DI-722-32-EN32 ruggedized analog inputs±2.5 to ±20 V50 kHz max sample rate14 bitdistributed synchronized operation
DI-730-EN8 analog inputs±10mV to ±1000V150 kHz max sample rate14 bitdistributed synchronized operation
DI-78532 isolated analog channelsUses isolated 5B amplifier modules150 kHz max sample rate14 bitdistributed synchronized operation
DI-78832 isolated analog channelsUses isolated 8B amplifier modules150 kHz max sample rate14 bitdistributed synchronized operation
 ModelChannelMeasurement RangeSample RateResolutionChannelStretch
(확장기능)		StandAloneFeature
DI-8088 differentialsTC, mV, V, pulse inputs25 mS to 1 hour16 bitBuilt-in Web Server for IoT Applications
EL-USB Series Datasheet
 ModelFunctionRangeRecord timeLCD displayFeature
EL-USB-1-LCDTemperature-35 to +80°C
(-31 to +176°F)		45-hr to 2-yearYes±1 °C (±2 °F) overall accuracy
EL-USB-1-PROTemperature-40 to +125°C
(-40 to +257°F)		9-hr to >2-yearExtra protection from corrosion, impact and water ingress
EL-USB-1-RCGTemperature-20 to +60°C
(-4 to +140°F)		45-hr to >2-yearRechargeable / Time and date stamps all data
EL-USB-1Temperature-35 to +80°C
(-31 to +176°F)		45-hr to 2-year ±1 °C (±2 °F) overall accuracy
EL-USB-2-LCDHumidity
temperature, dew point		0 to 100% RH
-35 to +80°C
(-31 to +176°F)		45-hour to >2-yearYes±0.5°C (±1°F), ±3% RH accuracy
EL-USB-2-LCD+Humidity
temperature, dew point		0 to 100% RH
-35 to +80°C
(-31 to +176°F)		45-hour to >2-yearYes±0.3°C (±0.6°F), ±2% RH overall accuracy
EL-USB-2Humidity
temperature, dew point		0 to 100% RH
-35 to +80°C
(-31 to +176°F)		45-hour to >2-year±0.5°C (±1°F), ±3% RH accuracy
EL-USB-2+Humidity
temperature, dew point		0 to 100% RH
-35 to +80°C
(-31 to +176°F)		45-hour to >2-year±0.3°C (±0.6°F), ±2% RH overall
EL-USB-3Voltage0 to 30 VDC9-hour to >2-yearIncludes a set of alligator clips
EL-USB-4Process current4 to 20 mA9-hour to >2-yearIncludes a set of alligator clips
EL-USB-5Event, State, Count3-28 VDC9-hour to >2-year
EL-USB-ACTCurrent-1000 to 1000 mV35-hr to years
EL-USB-COCarbon monoxide0 to 1000 ppm90-hour to 3.5-month
EL-USB-LiteTemperature-10 to +50°C
(+14 to +122°F)		1 month±1 °C (±2 °F) overall accuracy
EL-USB-TC-LCDThermocouple
(with display)		-100 to +900°C (J)
-200 to +1300°C (K)
-200 to +400°C (T)		9-hour to >2-yearYesIncluded K-type thermocouple probe
EL-USB-TCThermocouple
(no display)		-130 to +900°C (J)
-200 to +1300°C (K)
-200 to +350°C (T)		9-hour to >2-yearIncluded K-type thermocouple probe
EL-USB-TP-LCDTemperature-40 to +125°C
(-40 to +257°F)		9-hour to >2-yearYesIncluded 1-meter thermistor probe
EL-USB-TP-LCD+Temperature-40 to +125°C
(-40 to +257°F)		9-hour to >2-yearYesIncluded 3-meter thermistor probe
 ModelFunctionRangeFeature
EL-WiFi-TTemperature-20°C to +60°C (-4°F to +140°F)±1.0°C overall accuracy
EL-WiFi-TCThermocouple-270 to +1300°C (-454 to +2372°F)Supports TC-types J, K and T / Included K-type probe
EL-WiFi-DTCThermocouple-270 to +1300°C (-454 to +2372°F)Dual Channel / Supports TC-types J, K and T / 2 K-type TC probes included
EL-WiFi-THHumidity
temperature, dew point		-20°C to +60°C (-4°F to +140°F), 0 to 100% RH±1°C, ±3% RH overall accuracy
EL-WiFi-TH+Humidity
temperature, dew point		-20°C to +60°C (-4°F to +140°F), 0 to 100% RH±0.2°C, ±1.8% RH overall accuracy
EL-WiFi-TPTemperature-40°C to +125°C (-40°F to +257°F)±0.5°C overall accuracy
EL-WiFi-T+Temperature-20°C to +60°C (-4°F to +140°F)±0.1°C overall accuracy
EL-WiFi-TP+Temperature-40°C to +125°C (-40°F to +257°F)±0.1°C overall accuracy / Thermistor probe (50 cm) included
EL-WiFi-TP+Temperature-40°C to +125°C (-40°F to +257°F)±0.1°C overall accuracy / Two Thermistor probes included

Temp / Humidity Sensor | -40~+60°C, 0~100% RH

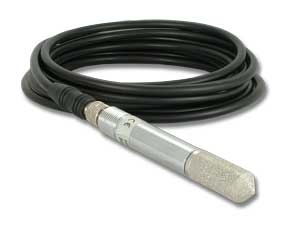

HMP60     | -40 to +60 °C, 0 to 100% RH

  • -40 to +60 °C, 0 to 100% RH Measurement Range
  • Rugged IP-64 rated metal construction (protected from dust and low pressure water jets)
  • Low power consumption
  • 2.5 V output
  • Sensor easily replaced
DATASHEET

GRAPHTEC Data Loggers (그라프텍)

GRAPHTEC Instruments | GL100, GL240, GL840, GL900, GL7000

GL100-WL     | Wireless coupler for GL240 and GL840 Data Logger

  • ambient temperature and RH
  • 3-axis acceleration
  • thermocouple temperature
  • thermistor temperature
  • illuminance/UV
  • CO2
  • AC current

DATASHEET  USER MANUAL

GL240     | 10 Channels Stand-alone USB Data Logger

  • 10 isolated analog/4 counter channels
  • Sample intervals from 10ms to 1 hour
  • ±20mV to ±100V programmable ranges
  • Supports TC measurements
  • Record to PC, USB drive, flash
  • Measure RH model B-530

DATASHEET  USER MANUAL  Product Info (한글)

GL840-M     | 20 Channels Stand-alone USB Data Logger

  • 20 isolated analog/4 counter channels
  • 60V common mode voltage
  • ±20mV to ±100V programmable ranges
  • Supports TC measurements
  • Record to PC, USB drive, flash
  • Measure RH model B-530

DATASHEET  USER MANUAL  Product Info (한글)

GL840-WV     | 20 Channels Stand-alone USB Data Logger

  • 20 isolated analog/4 counter channels
  • 300V common mode voltage
  • ±20mV to ±100V programmable ranges
  • Supports TC measurements
  • Record to PC, USB drive, flash
  • Measure RH model B-530

DATASHEET  USER MANUAL  Product Info (한글)

GL900     | High Speed isolated 8 Channels Stand-alone USB Data Logger

  • Sample rates up to 100 kHz per channel
  • 20mV to 500V full-scale measurements
  • Supports TC measurements, PT100, PT1000 3-wire RTD
  • USB and Ethernet PC interfaces.
  • Measure RH model B-530

DATASHEET  USER MANUAL

GL7000     | Modular Stand-alone Data Logger

  • Any industrial measurement
  • Sample interval as low as 1µs
  • Measure mixed accelerometer, TC, RTD, strain, voltage inputs
  • Record to PC, USB drive, flash
  • Measure RH with B-530

DATASHEET  USER MANUAL  USER MANUAL (한글)
