LORD MicroStrain® World’s smallest displacement sensors

Ideal for precise micro-position measurements, our Displacement Variable Reluctance Transducers (DVRTs) provide accurate, repeatable measurement. Inductive contact, non-contact, slide, and spring-actuated sensors are available in various stroke lengths– ideal in spaces where traditional LVDTs are too large. Our sensors operate in harsh environments over millions of cycles without degradation in performanceLORD MicroStrain® wireless sensor nodes offer low-power, embedded monitoring without the need to install or maintain wires.

Contact LVDT Sensors | Microminiature, Subminiature

Microminiature DVRT     | 3, 6 & 9 mm (Standard Version) / 1.5 mm (High Res Version)

  • Micron resolution with large stroke/size ratio
  • Frictionless design for robust use over millions of cycles
  • Suitable for use in harsh fluids and environments

DATASHEET

Quick Start Guide

Microminiature Gauging DVRT     | 3, 6 & 9 mm (Standard Version) / 1.5 mm (High Res Version)

  • Micron resolution with large stroke/size ratio
  • Gauging pin enables measurement on moving parts
  • Frictionless design for robust use over millions of cycles
  • Suitable for use in harsh fluids and environments

DATASHEET

Quick Start Guide

Subminiature DVRT     | 4, 8, 24, 38 mm (Standard Ver.) / 6 mm (High Res Ver.) / 500 µm or less (Nano Res)

  • Sub-micron resolution with large stroke/size ratio
  • Frictionless design for robust use over millions of cycles
  • Suitable for use in harsh fluids and environments
  • High dynamic range for difficult measurements

DATASHEET

Quick Start Guide

Subminiature Gauging DVRT     | 4, 8, 24, 38 mm (Standard) / 6 mm (High Res) / 500 µm or less (Nano Res)

  • Micron resolution with large stroke/size ratio
  • Gauging pin enables measurement on moving parts
  • Frictionless design for robust use over millions of cycles
  • Suitable for use in harsh fluids and environments

DATASHEET

Quick Start Guide

LS-LVDT | Long Stroke LVDT

LS-LVDT     | ±25 mm, ±50 mm, ±75 mm

  • High-resolution with large stroke/size ratio
  • Frictionless design for robust use over millions of cycles
  • Designed to withstand harsh environments
  • High dynamic range for difficult measurements

DATASHEET

Quick Start Guide

Non-Contact LVDT | non-contact

NC DVRT     | 1.0 mm, 2.5 mm

  • Sub-micron resolution with large stroke/size ratio
  • High dynamic range for difficult measurements

DATASHEET

Quick Start Guide

Signal Conditioners | DEMOD-DVRT2, DEMODE DC

DEMOD-DIGITAL     | Single channel

  • Internal calibration data delivers unmatched accuracy
  • Digital serial and analog outputs
  • 10X to 50X more accurate, repeatable signal processing
  • Clean, high-level signals to output connections
  • Digital Output: RS232 (RS485 upon request)
  • Analog Output: 0 to 10 V dc (standard), 0 to 5 V dc (optional)
  • Calibrated with each sensor for high accuracy outputs
  • Line voltage transient filtering and pure sine wave excitation source to the sensor bridge
DATASHEET

DEMOD-DVRT-2     | Single channel

  • Precision synchronous demodulation
  • Differential amplifier raises AC voltages and provides optimum demodulator performance
  • Paired and calibrated with each DVRT sensor for high accuracy outputs
  • Line voltage transient filtering and constant current excitation source to the sensor bridge

DATASHEET

MANUAL

DEMOD-DVRT-Backplane     | Four channels for DEMOD-DVRT2 Modules

  • Accomodates up to four DEMOD-DVRT2 modules
  • Simplifies power and signal wiring
  • Optional DIN-rail mount

DATASHEET

Quick Start Guide

DEMOD-DC     | In-line Type Signal Conditioner

  • Out-of-the-box use with all standard LORD MicroStrain® DVRT® sensors
  • Miniature body for embedded and space restricted applications
  • Identical performance between units for quick scaling

DATASHEET

Quick Start Guide

LVDT (Linear Variable Differential Transducers)

LVIT (Linear Variable Inductive Transducers)

Installation Guideline

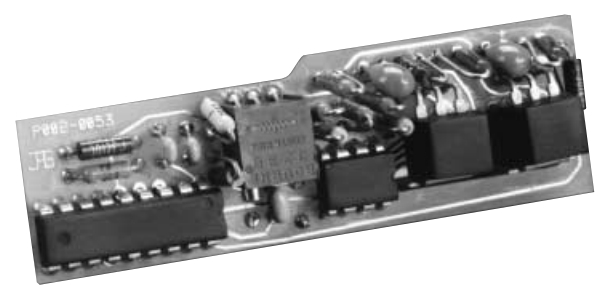

AC LVDT’s | AC출력 – Signal Conditioner 필요

HR Series     | General Purpose (범용)

  • 측정범위(mm): ±1.27, 2.54, 5.08, 7.62, 12.7, 25.4, 50.8, 76.2, 101.6, 127.0, 190.5, 254.0
  • 직선성- Linearity (% of Span): ±0.25%  @100% FR
  • 직선성- Linearity (% of Span):  ±0.10 ~0.15%  @ 50% FR
  • Housing Material : Stainless Steel

DATASHEET

HR-Z Series     | Mild Radiation Resistance LVDT (방사능 저항용)

  • 측정범위(mm): ±1.27, 2.54, 5.08, 7.62, 12.7, 25.4, 50.8, 76.2, 101.6, 127.0, 190.5, 254.0
  • 직선성- Linearity (% of Span): ±0.25%  @100% FR
  • 직선성- Linearity (% of Span):  ±0.10 ~0.15%  @ 50% FR
  • Housing Material : Stainless Steel

DATASHEET

HR-T Series     | General Purpose High Temp. LVDT (고온 환경용)

  • 측정범위(mm): ±1.27, 2.54, 5.08, 7.62, 12.7, 25.4, 50.8, 76.2, 101.6, 127.0, 190.5, 254.0
  • 직선성- Linearity (% of Span): ±0.25%  @100% FR
  • 직선성- Linearity (% of Span):  ±0.10 ~0.15%  @ 50% FR
  • Housing Material : Stainless Steel
  • Operating Temperature: -20°C to 200°C

DATASHEET

MHR Series     | Miniature Lightweight (소형, 경량, 미세변위 측정용)

  • 측정범위(mm): ±0.13, 0.25, 0.64, 1.27, 2.54, 6.35, 12.7, 25.4, 50.8
  • 직선성- Linearity (% of Span): ±0.25%  @100% FR
  • 직선성- Linearity (% of Span):  ±0.10 ~0.20%  @ 50% FR
  • Housing Material : Stainless Steel
  • Operating temperature: -55°C to 150°C

DATASHEET

MHR-T Series     | Miniature High Temp. LVDT (미세변위 측정용, 고온 환경용)

  • 측정범위(mm): ±0.13, 0.25, 0.64, 1.27, 2.54, 6.35, 12.7, 25.4, 50.8
  • 직선성- Linearity (% of Span): ±0.25%  @100% FR
  • 직선성- Linearity (% of Span):  ±0.15 ~0.20%  @ 50% FR
  • Housing Material : Stainless Steel
  • Operating Temperature: -20°C to +200°C

DATASHEET

MHR-V Series     | Submersible Miniature LVDT (방수타입)

  • 측정범위(mm): ±0.13, 0.25, 0.64, 1.27, 2.54, 6.35, 12.7, 25.4, 50.8
  • 직선성- Linearity (% of Span): ±0.25%  @100% FR
  • 직선성- Linearity (% of Span):  ±0.15 ~0.20%  @ 50% FR
  • Housing Material : Stainless Steel
  • Operating Temperature: -20°C to +200°C
  • Operating pressure: 10,000 PSI equipressure operation

DATASHEET

E Series     | Economy LVDT (경제형)

  • 측정범위(mm): ±2.54, 5.08, 7.62, 12.7, 25.5, 50.8
  • 직선성- Linearity (% of Span): ±0.5~1.0% @100% FR
  • Housing Material : Stainless Steel
  • Operating Temperature: -55°C to 95°C

DATASHEET

XS-B Series     | Subminiature AC LVDT (초소형)

  • 측정범위(mm): ±2.54, 6.35
  • 직선성- Linearity (% of Span): ±0.5%  @100% FR
  • Housing Material : Stainless Steel
  • Operating Temperature: -55°C to +150°C

DATASHEET

XS-C Series     | High Pressure Sealed AC LVDT (고압 밀폐환경 삽입응용)

  • 측정범위(mm): ±12.7, 25.4, 6.35
  • 직선성- Linearity (% of Span): ±0.25% @100% FR
  • Housing Material : Stainless Steel
  • Operating pressure: 3,000 PSI [207 bars]
  • Operating Temperature: -55°C to +150°C

DATASHEET

XS-D Series     | Large Displacement LVDT (몸체길이 대비 측정길이 장대형)

  • 측정범위(mm): 20.6 mm
  • 직선성- Linearity (% of Span): ±2%  @100% FR
  • Housing Material : Stainless Steel
  • Operating Temperature: -55°C to +150°C

DATASHEET

HCA Series     | Hermetically Sealed LVDT (열악한 산업현장용, 밀폐구조)

  • 측정범위(mm): ±1.27, 3.17, 6.35, 12.7, 25.4, 50.8, 76.2, 127.0, 254.0
  • 직선성- Linearity (% of Span): ±0.25% @100% FR
  • 직선성- Linearity (% of Span): ±0.20% @50% FR
  • Housing Material : Stainless Steel
  • Operating Temperature: -55°C to +150°C
  • IP68 to 1,000 PSI [70 bars] with use of proper mating connector plug

DATASHEET

HCA-T Series     | Hermetically Sealed High Temp. LVDT (고온용)

  • 측정범위(mm): ±1.27, 12.7, 127, 25.4, 254, 3.17, 50.8, 6.35, 76.2
  • 직선성- Linearity (% of Span): ±0.25%  @100% FR
  • Housing Material : Stainless Steel
  • Operating Temperature: -20°C to 200°C
  • IP68 to 1,000 PSI [70 bars] with use of proper mating connector plug

DATASHEET

HCI Series     | Hermetically Sealed High Input Impedance LVDT

  • 측정범위(mm): ±101.6, 12.7, 127, 25.4, 3.17, 50.8, 6.35, 76.2
  • 직선성- Linearity (% of Span): ±0.5% @100% FR
  • Housing Material : Stainless Steel
  • Operating Temperature: -55°C to +150°C
  • IP68 to 1,000 PSI [70 bars] with use of proper mating connector plug

DATASHEET

M-12 Series     | Premium Performance 12mm Diameter LVDT

  • 측정범위(mm): ±10, 100, 20, 30, 50, 65
  • 직선성- Linearity (% of Span): ±0.25% @100% FR
  • Housing Material : Stainless Steel
  • Operating Temperature: -55°C to +150°C

DATASHEET

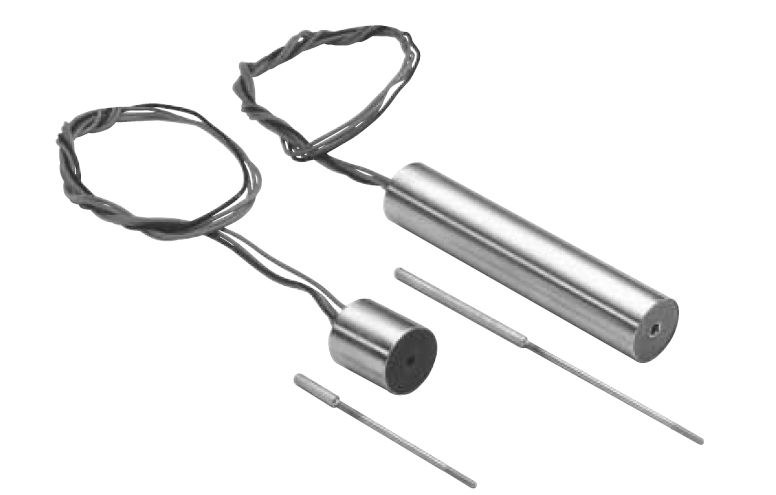

DC LVDT’s | DC출력 – Signal Conditioner 내장, 일체형

DC-EC Series     | DC Operated LVDT

  • 측정범위(mm): ±1.27, 12.7, 127, 25.4, 254, 3.17, 50.8, 6.35, 76.2
  • 직선성- Linearity (% of Span): ±0.25% @100% FR
  • Housing Material : Stainless Steel
  • Operating Temperature: 0°C to +70°C
  • Output: ±10V

DATASHEET

DC-SE Series     | 0-5V and 1-6V LVDT

  • 측정범위(mm): ±101.6, 12.7, 152.4, 2.54, 25.4, 50.8, 6.35
  • 직선성- Linearity (% of Span): ±0.25% @100% FR
  • Housing Material : Stainless Steel
  • Operating Temperature: -25°C to +85°C
  • EMI/ESD protected
  • Output: 0~5V, 1~6V 출력 선택가능

DATASHEET

HCD Series     | Hermetically Sealed LVDT

  • 측정범위(mm): ±1.27, 12.7, 127, 25.4, 254, 3.17, 50.8, 6.35, 76.2
  • 직선성- Linearity (% of Span): ±0.25% @100% FR
  • Housing Material : Stainless Steel
  • Operating Temperature: 0°C to +70°C
  • IEC IP68 rating to 1,000 PSI [70 bars]
  • Output: ±10V

DATASHEET

LCIT Series     | OEM LVDT

  • 측정범위(mm): ±101.6, 12.7, 25.4, 50.8, 6.35
  • 직선성- Linearity (% of Span): ±0.25% @100% FR
  • Housing Material : Stainless Steel
  • Operating Temperature: -25°C to +85°C
  • 7~36V 입력, 0.5~4.5V 출력

DATASHEET

Position Transmitter | 4-20mA Current Loop (2선식) LVDT

CTS-420 Series     | 4-20mA Loop Powered LVDT

  • 측정범위(mm): ±101.6, 12.7, 25.4, 254, 50.8, 6.35
  • 직선성- Linearity (% of Span): ±0.5 ~ ±1.5% @100% FR
  • Housing Material : Stainless Steel
  • Operating Temperature: -55°C to +150°C
  • 4-20mA 2-wire current loop operation

DATASHEET

HCT Series     | Hermetically Sealed 4-20mA LVDT

  • 측정범위(mm): 0~12.7, 127, 25.4, 254, 50.8, 6.35
  • 직선성- Linearity (% of Span): ±0.5~±1% @100% FR
  • Housing Material : Stainless Steel
  • Operating Temperature: -25°C to +85°C
  • IP68 to 1,000 PSI [70 bars] with use of proper mating connector plug

DATASHEET

PTS-420 Series     | Adjustable 4-20mA LVDT

  • 측정범위(mm): ±12.7, 127, 25.4, 254, 50.8, 6.35
  • 직선성- Linearity (% of Span): ±0.5 ~ ±1.25% @100% FR
  • Housing Material : Aluminum
  • Operating Temperature: -25°C to +85°C
  • Loop supply voltage: 10.5 to 28VDC
  • 4-20mA 2-wire current loop operation

DATASHEET

HC-485 Series     | RS-485 LVDT

  • 측정범위(mm): ±12.7, 25.4, 3.17, 50.8, 6.35, 76.2
  • 직선성- Linearity (% of Span): ±0.25% @100% FR (±0.1% optional)
  • Housing Material : Stainless Steel
  • Operating Temperature: -25°C to +85°C
  • IP68 to 1,000 PSI [70 bars] with use of proper mating connector plug

DATASHEET

Accessories | Core Rod, Mounting Block, Connector

Angular Position Sensors (회전변위센서)

installation Guideline

AC RVDT’s | AC출력 – Signal Conditioner 필요

R30A     | AC Light Weight RVDT

  • 측정범위(°): ±30, ±40, ±60
  • Supply Voltage (Vrms): 3
  • 직선성- Linearity (% of Span): ±0.25, ±0.5, ±2%  @100% FR
  • Output Type : AC Voltage
  • Operating temperature : -55°C to 150°C

DATASHEET

R36AS     | AC RVDT for Harsh Environments

  • 측정범위(°): ±30, ±40, ±60
  • Supply Voltage (Vrms): 3
  • 직선성- Linearity (% of Span): ±0.5, ±1, ±3%  @100% FR
  • Output Type : AC Voltage
  • Operating temperature : -55°C to 150°C

DATASHEET

RSYN Series     | AC Operated for Harsh Environments

  • 측정범위(°): ±30
  • Supply Voltage (Vrms): 3.5
  • 직선성- Linearity (% of Span): ±0.5%  @100% FR
  • Output Type : AC Voltage
  • Operating temperature : -55°C to 105°C

DATASHEET

DC RVDT’s | DC출력 – Signal Conditioner 내장, 일체형

R30D     | DC Light Weight RVDT

  • 측정범위(°): ±30, ±40, ±60
  • Supply Voltage (VDC): 13.5 – 16.5
  • 직선성- Linearity (% of Span): ±0.25, ±0.5, ±2%  @100% FR
  • High level, low noise DC output
  • Operating temperature : -18°C to 70°C

DATASHEET

R60D     | DC Operated RVIT (Rotary Variable Inductance Transducer)

  • 측정범위(°): ±60
  • Supply Voltage (VDC): 13.5 – 16.5
  • 직선성- Linearity (% of Span): ±0.5%  @100% FR
  • ±7.5VDC output
  • Operating temperature : -25°C to 85°C

DATASHEET

RVIT 15-60     | 0~120 Degree RVIT

  • 측정범위(°): 0-120
  • Supply Voltage (VDC): 10 – 28
  • 직선성- Linearity (% of Span): ±0.25%  @100% FR
  • ±3VDC ratiometric or 4-20mA output
  • Operating temperature : -18°C to 77°C

DATASHEET

RVIT 15-60     | +-60 Degree RVIT

  • 측정범위(°): ±60
  • Supply Voltage (VDC): 4 – 5.5
  • 직선성- Linearity (% of Span): ±0.25%  @100% FR
  • ±3VDC ratiometric or 4-20mA output
  • Operating temperature : -18°C to 77°C

DATASHEET

R120LC     | 0~120 Degree Low Cost DC RVIT

  • 측정범위(°): 0-120
  • Supply Voltage (VDC): 4.75 – 5.25
  • 직선성- Linearity (% of Span): ±0.5%  @100% FR
  • Ratiometric output
  • Operating temperature : -25°C to 85°C

DATASHEET

RVIT-Z Series     | OEM Rotary Position Sensor

  • 측정범위 (°): ±60
  • 직선성- Linearity (% of Span): ±0.5 ~ ±1.5% @100% FR
  • Supply Voltage (VDC): 10 – 28, 5, ±15
  • Unipolar or bipolar VDC operation
  • Operating Temperature: -25°C to 85°C

DATASHEET

RVDT System | Rotary Position Transmitter System

CTS-420 Series     | 2-wire current loop position transmitter system

  • 측정범위(°): 0 – 90
  • 직선성- Linearity (% of Span): ±1.5% @100% FR
  • Supply Voltage (VDC): 10 – 36
  • Input Current (Max) (mA): 4 – 20
  • Operating temperature range (LVDT/RVDT): -55ºC to +150ºC

DATASHEET
